      Mazda BT-50 (11/2011 - 08/2020) - Tough Dog 40mm Adjustable Lift Kit

      (0) Reviews

      Type: Mazda

      Model: BT-50

      Year: 11/2011 - 08/2020

      Front Lift: 40mm

      Rear Lift: 40mm

      Note: Matching springs with weight is critical to performance.


      The kit contains:

      • Complete Assembly Option:
        40mm adjustable Complete Assy (Front) x2
        Requires Assembly Option:
        40mm Adjustable Strut (FRONT) x 2
        Coil Springs (Pair) (FRONT) x 1
      • 40mm Adjustable (REAR) BM401232 x 2
      • Leaf Springs (REAR) x 2
      • U-Bolts TDUB-040 x 2
      • Urethane bush kits TDUK-070 x 1

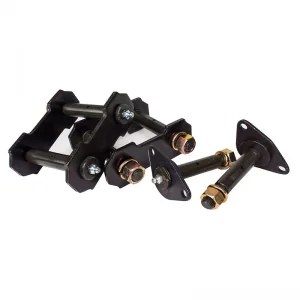

      • Greasable Pins TDGP-668 x 1
      • Greasable Shackles TDGS-390 x 1
      • Transmission Spacer TDSP-007 x 1

      Optional Upgrades:

      • Upper Control Arms TDCA-003 x 1
      • Bellow Airbags TDAA-102 x 1

      Front Setup and rear leaf part numbers in the description tab

      Customise your kit below:

      $2,445.00
      Tax included
      Quantity
      100% secure payments
       Calculate Shipping Cost
      Shipping:
      0
      Postcode via Delivery address is residential

      Type: Mazda

      Model: BT-50

      Year: 11/2011 - 08/2020

      Front Lift: 40mm

      Rear Lift: 40mm

      Note: Matching springs with weight is critical to performance.


      40mm Bore Adjustable Shock Absorbers

      The 40mm adjustable shock brings the ability to fine tune your ride control to just about every 4WD user. The shock offers 9 different stages of adjustment, to fine tune the ride characteristics to your personal preference and application.

      Features:

      • 40mm internal bore
      • 60mm external casing
      • 18mm chrome-plated rod
      • High temperature, all weather oil
      • Foam cell
      • 9 Stage external adjustment
      • Additional welding on all studs and eye rings
      • 4 Year / unlimited km Recreational warranty (Conditions Apply)
      • 3 Year / unlimited km Commercial warranty (Conditions Apply)

      FRONT SETUP OPTIONS:

      No Bullbar / Alloy Bullbar

      • Complete Assembly Option:
        41mm Foam Cell Complete Assy (FRONT) MAZ-001-LH x 1
        41mm Foam Cell Complete Assy (FRONT) MAZ-001-RH x 1
      • Requires Assembly Option:
        40mm Adjustable Strut (FRONT) BM404500 x 2
        Coil Springs (Pair) (FRONT) TDC451 x 1

      Steel Bullbar

      • Complete Assembly Option:
        41mm Foam Cell Complete Assy (FRONT) MAZ-001-LH x 1
        41mm Foam Cell Complete Assy (FRONT) MAZ-001-RH x 1
      • Requires Assembly Option:
        40mm Adjustable Strut (FRONT) BM404500 x 2
        Coil Springs (Pair) (FRONT) TDC451 x 1

      Bullbar + Winch

      • Complete Assembly Option:
        41mm Foam Cell Complete Assy (FRONT) MAZ-002-LH x 1
        41mm Foam Cell Complete Assy (FRONT) MAZ-002-RH x 1
      • Requires Assembly Option:
        40mm Adjustable Strut (FRONT) BM404500 x 2
        Coil Springs (Pair) (FRONT) TDC451HL x 1

      Rear Load Option:

      • Ideal for vehicles with no constant load.
        0-300kg Contstant Leaf Springs (REAR) FS369C x 2
      • Ideal for vehicles carrying a constant load of 300kg+
        300kg Contstant Load Leaf Springs (REAR) FS369L x 2
      • Ideal for vehicles carrying a constant load of 500kg+
        500kg Contstant Load Leaf Springs (REAR) FS369LL x 2

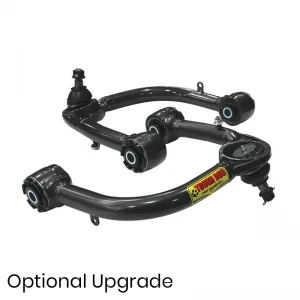

      UPPER CONTROL ARMSUPPER-CONTROL-ARMS

      When an IFS vehicle is fitted with a suspension lift, the original caster and camber specifications are pushed outside the acceptable limit. The vehicle loses caster which makes the steering vague, and positive camber is introduced, which contributes to uneven and accelerated tyre wear. Tough Dog Upper Control arms can help get the maximum performance and lifespan from your suspension and steering components.

      This Vehicle Part No: TDCA-003

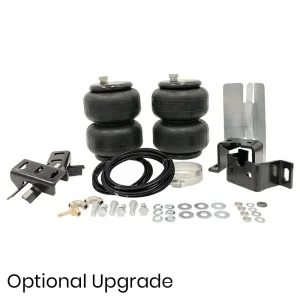

      BELLOWS AIRBAGSBELLOWS-AIRBAGS

      When carrying varying loads or heavy towing, Air Assist bellows kits can help level off vehicles. By increasing the air pressure, the bellows kit increases the effective spring rate and levels the vehicle. The kit is mounted to the axle tube and chassis where the OEM bump stop would be. Most kits can be fitted without drilling to install mounting brackets

      This Vehicle Part No: TDAA-102

      Data sheet

      Make
      Mazda
      Year
      11/2011 - 08/2020
      Kit Type
      Tough Dog 40mm Adjustable

      Specific References
