MAZDA BT50 SERIES 2 (10/2011 - MID 2020) - RAW NITRO MAX LIFT KIT - PREASSEMBLED STRUTS

    Mazda BT50 Series 2 (10/2011 - MID 2020) - Raw Nitro Max Lift Kit - Preassembled Struts

    Raw 4x4

    Type: BT50

    Model: Series 2

    Year: 10/2011 - MID 2020

    Suspension Type: Coil Spring Front / Leaf Spring Rear

    Front Lift: 40mm

    Rear Lift: 40mm

    Detail: Ute / Dual Cab
    Front Preassembled Strut & Coils
    Extra Heavy Duty - Nitro Max
    45mm Bore Nitrogen Gas Technology

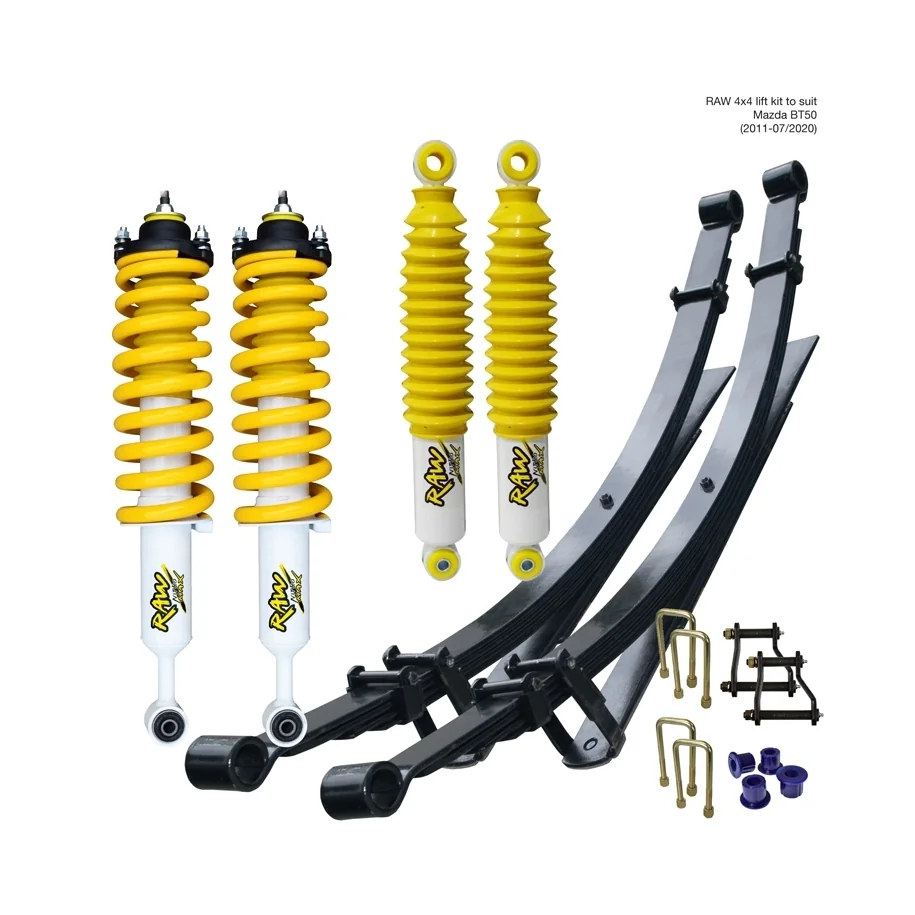

    The kit contains:

    • 2x Raw Nitro Max - Front Preassembled Strut & Coils
    • 2x NM326M4 - Raw Nitro Max Rear Shocks
    • 2x Rear Leaf Springs
    • 1x Mounting kit for leaf springs:
      BSK1005 - Mounting kit for leaf springs RL902,RL903,RL904
      BSK1036 - Mounting kit for leaf springs RL905

    Mounting kit contains:

    • 4x U-bolts
    • 2x Shackle hangers
    • 1x Poly Bush kit - Rear spring front eye
    • 1x Poly Bush kit - Rear spring upper shackle
    • 1x Poly Bush kit - Rear spring lower rear eye
    Customise your kit below:
    * Front Load Options
    * Rear Load Options
    Upgrade Cost: 0
    $2,414.00
    Tax included
    $2,489.00
    $75.00 (3.11%)

    * RRP based on "The kit contains" parts only.

    Product Upgrades and Additions

    Type: BT50

    Model: Series 2

    Year: 10/2011 - MID 2020

    Suspension Type: Coil Spring Front / Leaf Spring Rear

    Front Lift: 40mm

    Rear Lift: 40mm

    Detail: Ute / Dual Cab
    Front Preassembled Strut & Coils
    Extra Heavy Duty - Nitro Max
    45mm Bore Nitrogen Gas Technology


    NitroMax: Extra Heavy Duty Shocks & Struts

    Specifically designed for heavy coil sprung and torsion bar vehicles, Nitro Max uses a proven truck shock absorber design with highly tuned valving for 4 x 4 applications carrying heavy loads and travel demanding terrain.

    Recommended for vehicles used in mining, long distance touring, towing and heavy duty applications.

    Features

    Strong construction build to last

    • 360° welds with one piece eye rings and machine welded end caps for increased strength and durability.
    • Deep penetrating structural welds for stronger construction
    • Body and shield made of strong steel construction with extra thick tube for added endurance and strength

    Engineered for Performance

    Nitro Max achieve enhanced performance and longevity through:

    • Larger external body size
    • Low pressure nitrogen gas charged to resist fade
    • Improved dampening
    • High temperature oil
    • Seals resistant to elevated temperatures
    • Hydraulic stop at fully extended

    Important Notes for setting up your Vehicle Correctly:

    • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
    • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
    • Please do not put Occasional Loads into your "Constant" Load determinations.
    • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

    Please Note:

    • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

    Data sheet

    Make
    Mazda
    Model
    BT50
    Series
    Series II - UP/UR - 10/2011 to Mid 2020
    Brand
    Raw 4x4
    Shock Type
    Raw Nitro Max
    Product Type
    Full Lift Kit
    Lift Height
    40-50mm
