Mazda BT-50 (11/2011 - 08/2020) - Tough Dog 41mm Foam Cell Lift Kit

(0) Reviews

Type: Mazda

Model: BT-50

Year: 11/2011 - 08/2020

Front Lift: 40mm

Rear Lift: 40mm

Note: Matching springs with weight is critical to performance.

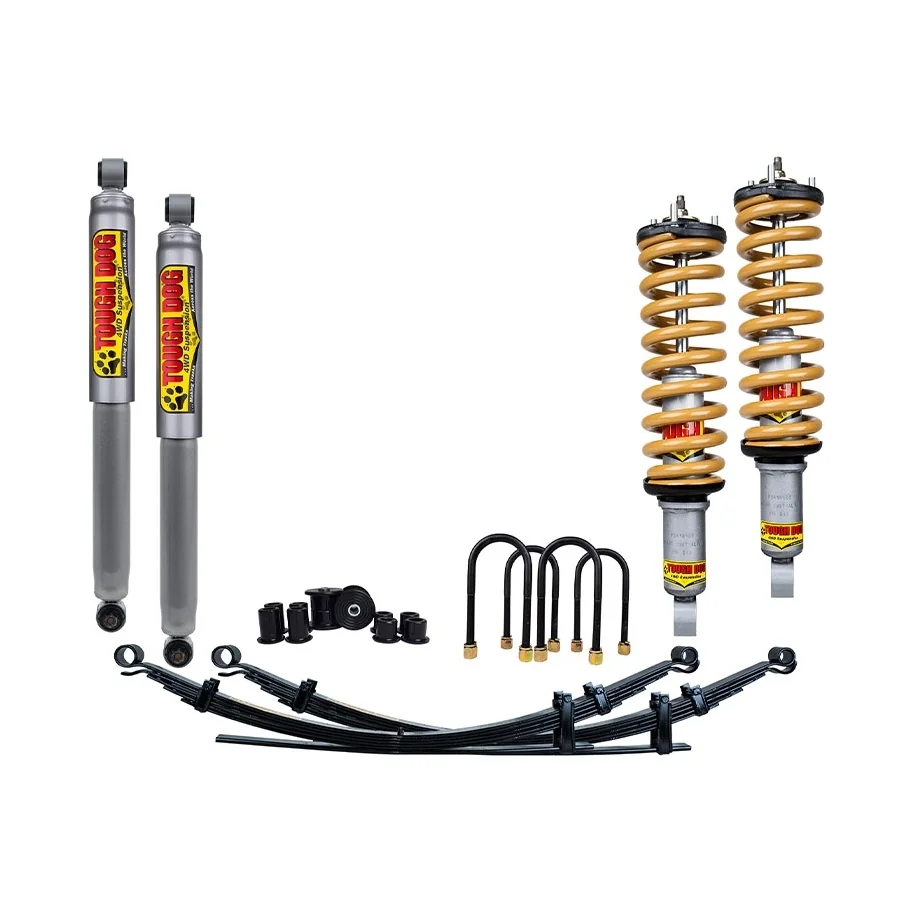

The kit contains:

Complete Assembly Option:
41mm Foam Cell Complete Assy (Front) x2
Requires Assembly Option:
41mm Foam Cell Strut (FRONT) x 2
Coil Springs (Pair) (FRONT) x 1
41mm Foam Cell (REAR) FC41232 x 2
Leaf Springs (REAR) x 2
U-Bolts TDUB-040 x 2
Urethane bush kits TDUK-070 x 1

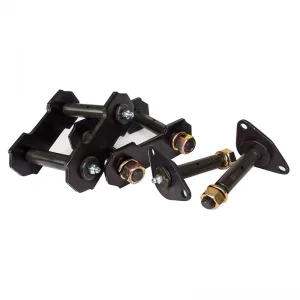

Greasable Pins TDGP-668 x 1
Greasable Shackles TDGS-390 x 1
Transmission Spacer TDSP-007 x 1

Optional Upgrades:

Upper Control Arms TDCA-003 x 1
Bellow Airbags TDAA-102 x 1

Front Setup and rear leaf part numbers in the description tab

Customise your kit below:

Assembly Option

$2,255.00

Tax included

Quantity

100% secure payments

Front Setup^*

Rear Load Option^*

Upper Control Arms^*

Bellow Airbags^*

Calculate Shipping Cost

Shipping: 0

Postcode via Delivery address is residential

Type: Mazda

Model: BT-50

Year: 11/2011 - 08/2020

Front Lift: 40mm

Rear Lift: 40mm

Note: Matching springs with weight is critical to performance.

Foam Cell Shock Absorbers

Tough Dog's award winning Foam Cell shock is our best selling shock for all round performance. Whether you head bush on the occasional weekend or for the majority of the year, Foam Cell shocks will handle your application.

Features:

Twin tube design
High temperature, all weather oil
18mm, double chrome-plated rod
Additional welding on all studs & eyerings
Multi stage Velocity Sensitive Valving
Rod wiper seal and multi lip seal
Hydraulic rebound stop
4 Year / unlimited km Recreational warranty (Conditions Apply)
3 Year / unlimited km Commercial warranty (Conditions Apply)

FRONT SETUP OPTIONS:

No Bullbar / Alloy Bullbar

Complete Assembly Option:
41mm Foam Cell Complete Assy (FRONT) MAZ-003-LH x 1
41mm Foam Cell Complete Assy (FRONT) MAZ-003-RH x 1
Requires Assembly Option:
41mm Foam Cell Strut (FRONT) FC404500 x 2
Coil Springs (Pair) (FRONT) TDC451 x 1

Steel Bullbar

Complete Assembly Option:
41mm Foam Cell Complete Assy (FRONT) MAZ-003-LH x 1
41mm Foam Cell Complete Assy (FRONT) MAZ-003-RH x 1
Requires Assembly Option:
41mm Foam Cell Strut (FRONT) FC404500 x 2
Coil Springs (Pair) (FRONT) TDC451 x 1

Bullbar + Winch

Complete Assembly Option:
41mm Foam Cell Complete Assy (FRONT) MAZ-004-LH x 1
41mm Foam Cell Complete Assy (FRONT) MAZ-004-RH x 1
Requires Assembly Option:
41mm Foam Cell Strut (FRONT) FC404500 x 2
Coil Springs (Pair) (FRONT) TDC451HL x 1

Rear Load Option:

Ideal for vehicles with no constant load.
0-300kg Contstant Leaf Springs (REAR) FS369C x 2
Ideal for vehicles carrying a constant load of 300kg+
300kg Contstant Load Leaf Springs (REAR) FS369L x 2
Ideal for vehicles carrying a constant load of 500kg+
500kg Contstant Load Leaf Springs (REAR) FS369LL x 2

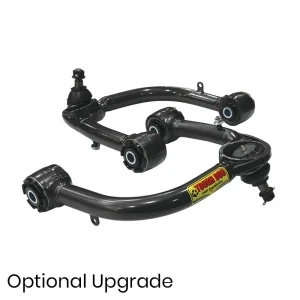

UPPER CONTROL ARMS

When an IFS vehicle is fitted with a suspension lift, the original caster and camber specifications are pushed outside the acceptable limit. The vehicle loses caster which makes the steering vague, and positive camber is introduced, which contributes to uneven and accelerated tyre wear. Tough Dog Upper Control arms can help get the maximum performance and lifespan from your suspension and steering components.

This Vehicle Part No: TDCA-003

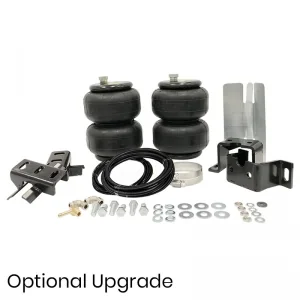

BELLOWS AIRBAGS

When carrying varying loads or heavy towing, Air Assist bellows kits can help level off vehicles. By increasing the air pressure, the bellows kit increases the effective spring rate and levels the vehicle. The kit is mounted to the axle tube and chassis where the OEM bump stop would be. Most kits can be fitted without drilling to install mounting brackets

This Vehicle Part No: TDAA-102
