Mazda BT-50 (08/2020 On) - Tough Dog 40mm Adjustable Lift Kit

(0) Reviews

Type: Mazda

Model: BT-50

Year: 08/2020 On

Front Lift: 40mm

Rear Lift: 40mm

Note: Matching springs with weight is critical to performance.

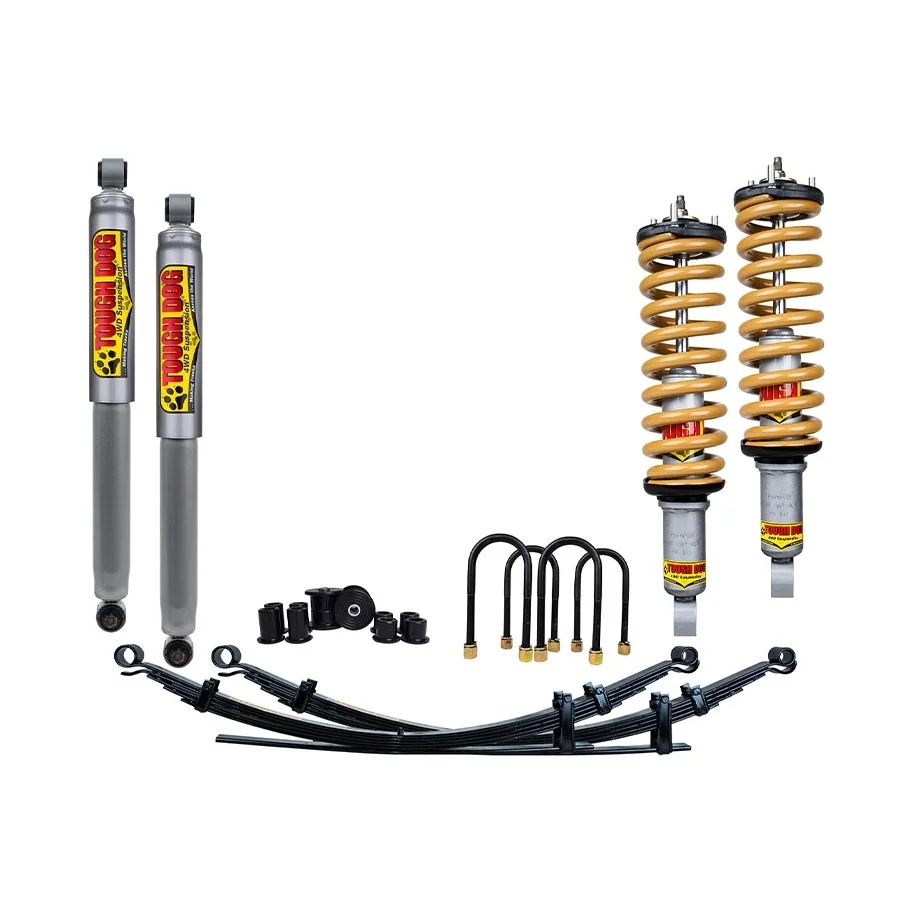

The kit contains:

Complete Assembly Option:
40mm adjustable Complete Assy (Front) x2
Requires Assembly Option:
40mm Adjustable Strut (FRONT) x 2
Coil Springs (Pair) (FRONT) x 1
40mm Adjustable (REAR) BM403035 x 2
Leaf Springs (REAR) x 2
U-Bolts TDUB-016 x 2
Urethane bush kits TDUK-085 x 1

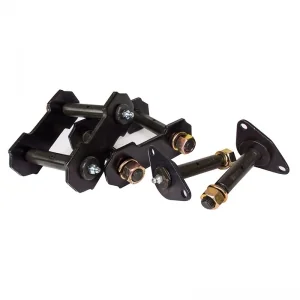

Greasable Pins TDGP-668 x 1
Greasable Shackles TDGS-902 x 1
300kg and 500kg Constant Load Spings Only:
Handbrake Relocation Kit TDSK-021 x 1

Optional Upgrades:

Bellow Airbags TDAA-130 x 1

Front Setup and rear leaf part numbers in the description tab

Customise your kit below:

Assembly Option

$2,350.00

Tax included

Quantity

100% secure payments

Front Setup^*

Rear Load Option^*

Bellow Airbags^*

Calculate Shipping Cost

Shipping: 0

Postcode via Delivery address is residential

Type: Mazda

Model: BT-50

Year: 08/2020 On

Front Lift: 40mm

Rear Lift: 40mm

Note: Matching springs with weight is critical to performance.

40mm Bore Adjustable Shock Absorbers

The 40mm adjustable shock brings the ability to fine tune your ride control to just about every 4WD user. The shock offers 9 different stages of adjustment, to fine tune the ride characteristics to your personal preference and application.

Features:

40mm internal bore
60mm external casing
18mm chrome-plated rod
High temperature, all weather oil
Foam cell
9 Stage external adjustment
Additional welding on all studs and eye rings
4 Year / unlimited km Recreational warranty (Conditions Apply)
3 Year / unlimited km Commercial warranty (Conditions Apply)

FRONT SETUP OPTIONS:

No Bullbar / Alloy Bullbar

Complete Assembly Option:
40mm Adjustable Complete Assy (FRONT) ISU-001 x 2
Requires Assembly Option:
40mm Adjustable Strut (FRONT) BM404929 x 2
Coil Springs (Pair) (FRONT) TDC974 x 1

Steel Bullbar

Complete Assembly Option:
40mm Adjustable Complete Assy (FRONT) ISU-002 x 2
Requires Assembly Option:
40mm Adjustable Strut (FRONT) BM404929 x 2
Coil Springs (Pair) (FRONT) TDC974H x 1

Bullbar + Winch

Complete Assembly Option:
40mm Adjustable Complete Assy (FRONT) ISU-002 x 2
Requires Assembly Option:
40mm Adjustable Strut (FRONT) BM404929 x 2
Coil Springs (Pair) (FRONT) TDC974H x 1

Rear Load Option:

Ideal for vehicles with no constant load.
0-300kg Contstant Leaf Springs (REAR) FS215C x 2
Ideal for vehicles carrying a constant load of 300kg+
300kg Contstant Load Leaf Springs (REAR) FS214L x 2
Ideal for vehicles carrying a constant load of 500kg+
500kg Contstant Load Leaf Springs (REAR) FS214LL x 2

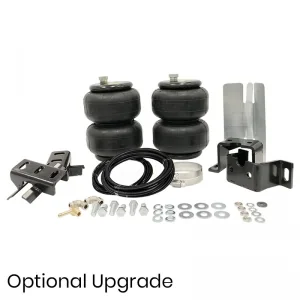

BELLOWS AIRBAGS

When carrying varying loads or heavy towing, Air Assist bellows kits can help level off vehicles. By increasing the air pressure, the bellows kit increases the effective spring rate and levels the vehicle. The kit is mounted to the axle tube and chassis where the OEM bump stop would be. Most kits can be fitted without drilling to install mounting brackets

This Vehicle Part No: TDAA-130
