MAZDA BT-50 (11/2006 - 10/2011) - TOUGH DOG 41MM FOAM CELL LIFT KIT

Mazda BT-50 Series I - UN (11/2006 - 10/2011) - Tough Dog 41mm Foam Cell Lift Kit

Tough Dog

Type: BT-50

Model: Series I - UN

Year: 11/2006 - 10/2011

Suspension Type: Torsion Bar Front / Leaf Spring Rear

Front Lift: 45mm

Rear Lift: 45mm

Detail: 41mm Internal Bore Foam Cell


The kit contains:

  • 2x Tough Dog Front Coil Springs
  • 2x FC42051B - Tough Dog 41mm Foam Cell Front Shocks
  • 2x FC41232 - Tough Dog 41mm Foam Cell Rear Shocks
  • 2x U-Bolts:
    TDUB-040 - 0-300kg Rear Leaf Springs
    TDUB-039 - 300kg Constant Load Rear Leaf Springs
  • 1x TDUK-069 - Urethane Bush Kit
  • 1x TDGP-668 - Greasable Pins
  • 1x TDGS-386/1 - Greasable Shackles
  • 1x TDSK-020 - Shock Mount Strengthening Kit
  • 2x Tough Dog Rear Leaf Springs

Recommended Upgrades:

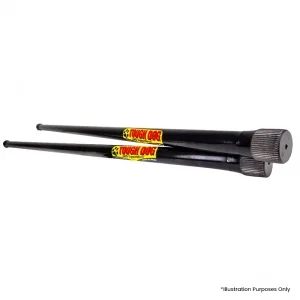

  • 1x 4WTB-1440 - Torsion Bars (Pair) (FRONT)
  • 1x TDAA-101 - Bellows Airbags
Customise your kit below:
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$1,945.00
Tax included
Quantity
 Calculate Shipping Cost

Type: BT-50

Model: Series I - UN

Year: 11/2006 - 10/2011

Suspension Type: Torsion Bar Front / Leaf Spring Rear

Front Lift: 45mm

Rear Lift: 45mm

Detail: 41mm Internal Bore Foam Cell


Foam Cell Shock Absorbers

Tough Dogs award winning Foam Cell shock is our best selling shock for all round performance. Whether you head bush on the occasional weekend or for the majority of the year, Foam Cell shocks will handle your application.

Features:

  • Twin tube design
  • High temperature, all weather oil
  • 18mm, double chrome-plated rod
  • Additional welding on all studs & eyerings
  • Multi stage Velocity Sensitive Valving
  • Rod wiper seal and multi lip seal
  • Hydraulic rebound stop
  • 4 Year / unlimited km Recreational warranty (Conditions Apply)
  • 3 Year / unlimited km Commercial warranty (Conditions Apply)

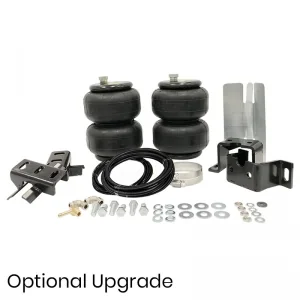

Bellows Airbags

When carrying varying loads or heavy towing, Air Assist bellows kits can help level off vehicles. By increasing the air pressure, the bellows kit increases the effective spring rate and levels the vehicle. The kit is mounted to the axle tube and chassis where the OEM bump stop would be. Most kits can be fitted without drilling to install mounting brackets

This Vehicle Part No: TDAA-101


Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Mazda
Model
BT50
Series
Series I - UN - 2007 to 10/2011
Brand
Tough Dog
Shock Type
Tough Dog 41mm Foam Cell
Type
Full Lift Kit
Lift Height
40-50mm
