      Ford Ranger PX3 (Mid 06/2018 - 06/2022) - Dobinsons Monotube Remote Reservoir nonadjustable (MRR) Lift Kit 2"

      (0) Reviews

      The following parts are currently out of stock:

      • UCA19-004K - Upper Control Arm - (Pair) Chrome-Moly Tubular

      If you are still interested in ordering your kit with these parts please call to confirm the parts are back instock or check to see if we have an ETA on new stock.

      Superior Upper Control Arms are currently in stock:


      Type: Ranger

      Model: PX3

      Year: Mid 06/2018 - 06/2022

      Suspension Type: Coil Spring Front / Leaf Spring Rear

      Front Lift: 45mm

      Rear Lift: 35-60mm

      Detail: 4x4 Strut Mounted Front Bump Stop Models Only,
      Also Suits 4x2 Highrider
      Australian & Internationally delivered models with Bolt & Eye Lower Front Strut Bush
      Nonadjustable Remote Reservoir (MRR)

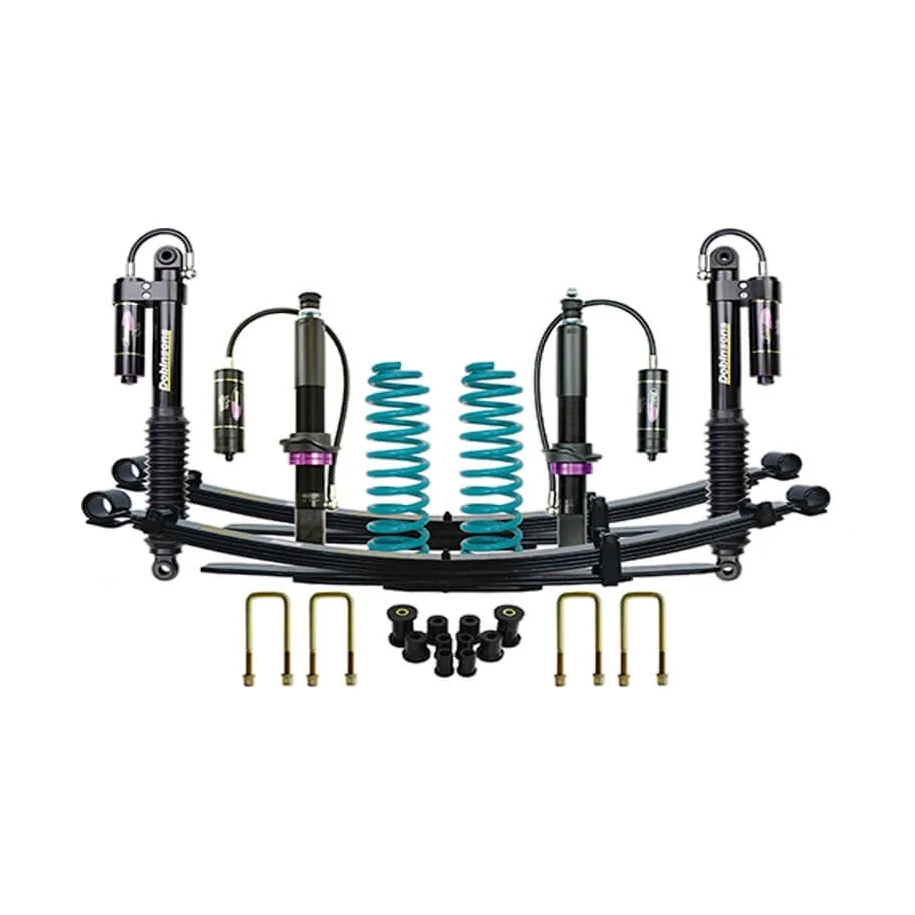

      The kit contains:

      • 2x Dobinsons Front Coil Springs
      • 2x MR19-50094 - Monotube Remote Reservoir nonadjustable Front Shock absorbers
        Adjustable Spring Seat Height X = 226mm / 8.9"
      • 2x MR19-50081T - Monotube Remote Reservoir nonadjustable Rear Shock absorbers
      • 1x PB19-1104K - Polyurethane Bush Kit
      • 4x UB21-466 - U Bolts
      • 2x Dobinsons Rear Leaf Springs

      Recommended Upgrades:

      • Coil and Strut Assembly with new strut tops SC19-010 - Strut tops
      • 2x SK19-058 - Greasable Shackles & 2x SP59-060 - Greasable Shackle Pins
      • 2x SE19-570 - Swaybar Link
        Must Fit With Dobinsons Shock Absorbers

      Optional Upgrades:

      • 1x RM19-002 - Shock Absorber Bracket - Remote Reservoir Positioning And Fitment
        * MRR and MRA shocks come with a generic mounting Bracket.
      • 1x WA19-526K - Tailshaft Centre Bearing Spacer Kit
        * Helps To Reduce Driveline Vibration In Lifted Vehicles.
      • 1x UCA19-004K - Upper Control Arm - (Pair) Chrome-Moly Tubular 3º Castor Built In Rubber Bushes. Ball Joint Not Included.
        * Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment
      • 1x RR4634 - Airbag Man - Air Suspension Helper Kit for Leaf Springs

      Customise your kit below:

      $2,440.00
      Tax included
      Quantity
      100% secure payments
       Calculate Shipping Cost
      Shipping:
      0
      Postcode via Delivery address is residential

      Type: Ranger

      Model: PX3

      Year: Mid 06/2018 - 06/2022

      Suspension Type: Coil Spring Front / Leaf Spring Rear

      Front Lift: 45mm

      Rear Lift: 35-60mm

      Detail: 4x4 Strut Mounted Front Bump Stop Models Only,
      Also Suits 4x2 Highrider
      Australian & Internationally delivered models with Bolt & Eye Lower Front Strut Bush
      Nonadjustable Remote Reservoir (MRR)


      Monotube Remote Reservoir nonadjustable (MRR) shock absorbers

      With serious 4x4 owners now pushing their vehicles through harder, harsher terrain with more accessories fitted to their 4x4’s than ever before Dobinsons saw the need for a no compromise, performance engineered shock absorber that offers the ultimate in performance.

      Over four years of research, development and testing was undertaken to produce Dobinsons Monotube Remote Reservoir shock absorbers. Dobinsons MRR Series introduces premium quality build design and features to achieve the ultimate in performance and durability.

      50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfect housing for an enormous oil capacity and surface area to resist shock fade and maintain vehicle handling.

      Unlike some other brands, each Dobinsons shock absorber is designed specifically for the vehicle and application and is designed to perform best when matched with Dobinsons Coil Springs. In some cases multiple options are available to ensure the best possible ride, handling, comfort and performance is achieved for the complete suspension system.

      Features and Specifications:

      • Massive 56mm & 66mm Outer Body
      • External Remote Oil Reservoir
      • 3mm Heavy Duty Wall Thickness
      • Monster 50mm & 60mm Bore
      • Direct Bolt-on Design
      • Triple Lip Oil Seal
      • Fully Rebuildable Design
      • Vehicle Specific Valving
      • EDP Surface Protection
      • Natural Rubber Bushings

      Important Notes for setting up your Vehicle Correctly:

      • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
      • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
      • Please do not put Occasional Loads into your "Constant" Load determinations.
      • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

      Please Note:

      • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

      Data sheet

      Make
      Ford
      Year
      Mid 06/2018 - 06/2022
      Kit Type
      Dobinsons MRR

      Specific References
