FORD RANGER PX3 (MID 06/2018 - 06/2022) - TOUGH DOG 40MM ADJUSTABLE FRONT LIFT - PREASSEMBLED STRUTS

    Ford Ranger PX3 (Mid 06/2018 - 06/2022) - Tough Dog 40mm Adjustable Front Lift - Preassembled Struts

    Tough Dog

    Type: Ranger

    Model: PX3

    Year: Mid 06/2018 - 06/2022

    Suspension Type: Coil Spring Front

    Front Lift: 40mm

    Detail: 40mm Bore Adjustable Shock
    Front Preassembled Struts & Coils


    The kit contains:

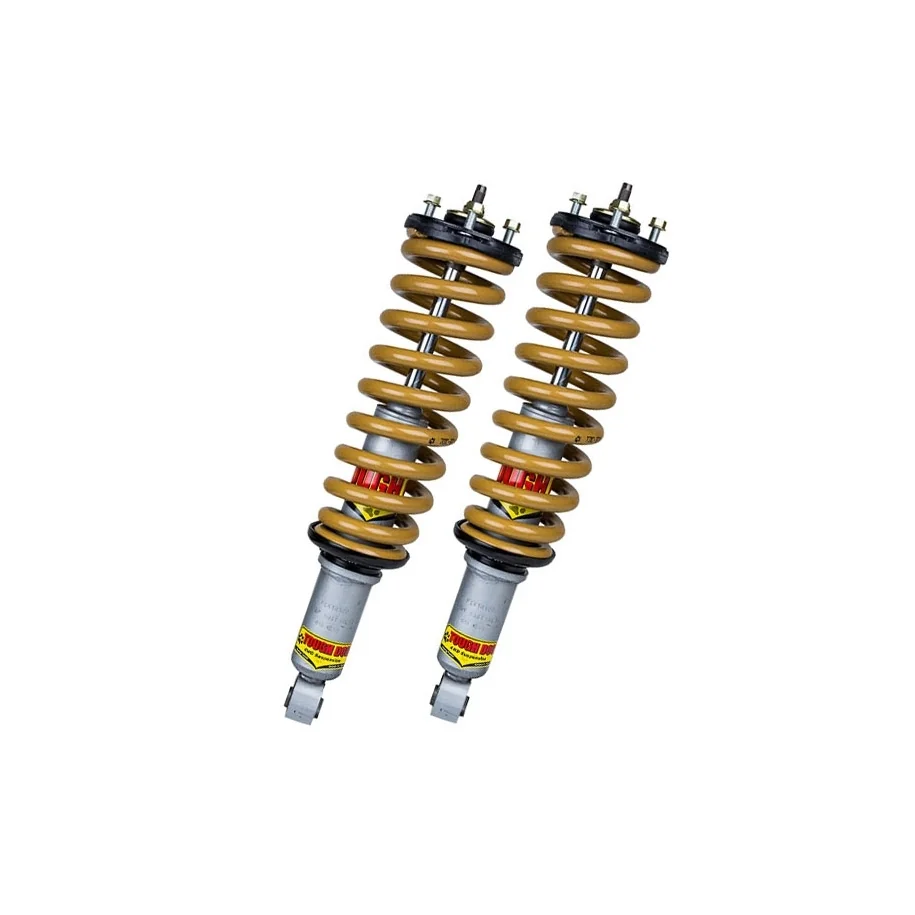

    • 2x Tough Dog 40mm Adjustable - Front Preassembled Strut & Coils

    Recommended Upgrades:

    • 1x TDCA-003 - Upper Control Arms
    Customise your kit below:
    * Front Load Options
    * Select your upgrades
    Upgrade Cost: 0
    $1,347.50
    Tax included
    Quantity
     Calculate Shipping Cost

    Product Upgrades and Additions

    Type: Ranger

    Model: PX3

    Year: Mid 06/2018 - 06/2022

    Suspension Type: Coil Spring Front

    Front Lift: 40mm

    Detail: 40mm Bore Adjustable Shock
    Front Preassembled Struts & Coils


    40mm Bore Adjustable Shock Absorbers

    The 40mm adjustable shock brings the ability to fine tune your ride control to just about every 4WD user. The shock offers 9 different stages of adjustment, to fine tune the ride characteristics to your personal preference and application.

    Features:

    • 40mm internal bore
    • 60mm external casing
    • 18mm chrome-plated rod
    • High temperature, all weather oil
    • Foam cell
    • 9 Stage external adjustment
    • Additional welding on all studs and eye rings
    • 4 Year / unlimited km Recreational warranty (Conditions Apply)
    • 3 Year / unlimited km Commercial warranty (Conditions Apply)

    Upper Control ArmsUPPER-CONTROL-ARMS

    When an IFS vehicle is fitted with a suspension lift, the original caster and camber specifications are pushed outside the acceptable limit. The vehicle loses caster which makes the steering vague, and positive camber is introduced, which contributes to uneven and accelerated tyre wear. Tough Dog Upper Control arms can help get the maximum performance and lifediv from your suspension and steering components.

    This Vehicle Part No: TDCA-003


    Important Notes for setting up your Vehicle Correctly:

    • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
    • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
    • Please do not put Occasional Loads into your "Constant" Load determinations.
    • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

    Please Note:

    • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

    Data sheet

    Make
    Ford
    Model
    Ranger
    Series
    PX3 - Mid 06/2018 - 06/2022
    Brand
    Tough Dog
    Shock Type
    Tough Dog 40mm Adjustable
    Product Type
    Front Lift
    Lift Height
    40-50mm
