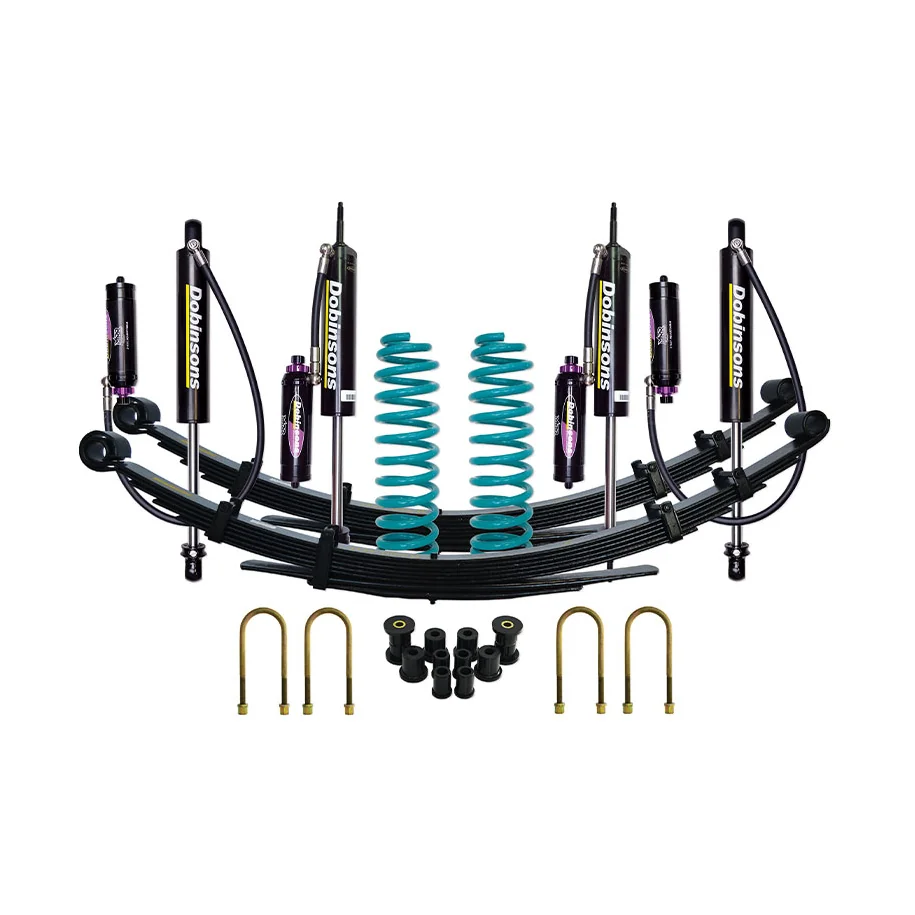

Toyota Landcruiser 78 / 79 Series (09/1999 on) - Dobinsons Monotube Remote Reservoir 3-way Adjustable (MRA) Lift Kit 3"

Type: Landcruiser

Model: 78 / 79 Series - FZJ79/78 - HZJ79/78 - HDJ79 - VDJ79/78 - GRJ79

Year: 09/1999 to 07/2016 Single Cab - 09/1999 on Troop Carrier Dual Cab

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 75mm

Rear Lift: 50-75mm

Detail: Pickup
4.5L Turbo Diesel Dual Cab/Pickup
Troop Carrier
3-Way Damping Adjustment Remote Reservoir (MRA)
Does not suit 08/2016 on, Single Cab Models.
2022 on Models Equipped With AEB Require Calibration By A Toyota Dealer After Installation


The kit contains:

  • 2x Dobinsons Front Coil Springs
  • 2x MRA45-A116 - Monotube Remote Reservoir (3-Way Adjustable) Front Shock absorbers
    * Adjustable Spring Seat Height X = 222mm / 8.74"
  • 2x MRA45-A913 - Monotube Remote Reservoir (3-Way Adjustable) Rear Shock absorbers
  • 4x UB59-416 - U Bolt Kit
  • 1x PB59-1100K - Polyurethane Leaf Spring Bush Kit
  • 1x BA59-001 - Brake Adjuster
  • 2x Dobinsons Rear Leaf Springs

Recommended Upgrades:

  • 2x SK59-051 - Greasable Shackles & 2x SP59-057 - Greasable Shackle Pins
  • 1x WA59-585K - Castor Plate Kit - 4° Castor Plate Kit - Suits 3"-5" Lift
  • 1x WA59-544K - ABS Cable Bracket Kit
    * Must Be Fitted To Vehicles With ABS Brakes
  • 1x WA59-543K - Adjustable Sway Bar Extension (Suits 2" to 4" Lift)
    * Must Be Fitted For Tail-Shaft/Swaybar Clearance
  • 1x PR59-1418 - Adjustable Panhard Rod - Right Hand Drive V8 Dual Cab & Single Cab to 07-08/16
    * Approx 940mm Long Centre of Bush to Centre of Bush (Complete with Bushes)
  • 1x PR59-1420 - Adjustable Panhard Rod - Right Hand Drive 6 Cyl & Single Cab V8 09/16 on
    * Approx 810mm Long Centre of Bush to Centre of Bush (Complete with Bushes)

Optional Upgrades:

  • 1x SD59-824 - Steering Damper - FZJ79,HZJ79 (to 04/2007)
  • 1x SS59A824 - Adjustable Performance Remote Reservoir Damper - FZJ79,HZJ79 (to 04/2007)
  • 1x SD59-825 - Steering Damper - FZJ79,HZJ79,VDJ79 (04/2007 on)
  • 1x RM59-041 - Reservoir Mounting Bracket Kit (MRR and MRA kits only)
    * Optimal Remote Reservoir Fitment,Positioning & Strength
Customise your kit below:
* Front Load Options
* Front Load Options
* Rear Load Options
* Vehicle Year
* Select your upgrades
Upgrade Cost: 0
$3,564.00
$3,564.00
$3,207.60 Save 10%
Tax included
$3,962.00
$754.40
Quantity
 Calculate Shipping Cost

Type: Landcruiser

Model: 78 / 79 Series - FZJ79/78 - HZJ79/78 - HDJ79 - VDJ79/78 - GRJ79

Year: 09/1999 to 07/2016 Single Cab - 09/1999 on Troop Carrier Dual Cab

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 75mm

Rear Lift: 50-75mm

Detail: Pickup
4.5L Turbo Diesel Dual Cab/Pickup
Troop Carrier
3-Way Damping Adjustment Remote Reservoir (MRA)


Does not suit 08/2016 on, Single Cab Models. - Lower Front Crossmember Under Tailshaft needs to be modified and engineered to allow clearance.

2022 on Models Equipped With AEB Require Calibration By A Toyota Dealer After Installation


MRA 3 Way Adjustable Shock Absorbers

Built on the back of the race winning Monotube Remote Reservoir (MRR) shock absorbers, Dobinsons new range of MRR Adjustable shock absorbers combine the best in high performance race-bred Monotube technology, with an all new 3-way damping adjustment system to turn your 4x4 into the ultimate off-road machine. Each component of the MRR shock absorber has been refined and improved to offer a higher level of ride quality, vehicle control and shock absorber performance.

The new 6063 honed aluminium reservoir, revised light-weight floating piston, Carbon Fibre/PTFE/Disulphide composite wear band, improved 3-stage sealing system and the ability to run lower gas pressure with the addition of the reservoir compression adjuster, have combined to provide massive reductions in shock absorber friction, resulting in an improved vehicle ride and damping performance. The revised sealing design now provides a 3 stage FKM-HNBR shaft seal system that, when combined with the reduced operating frictions, provides a vastly increased service life with reduced wear.

The Micro-polished, hard chromed and heat treated shock shaft, revised CNC aluminium high flow race piston, and DOM Seamless tubing body provides the ultimate in performance and off-road durability. The 3-way adjustment design reduces the main piston working load, distributing heat more evenly between the main piston and the reservoir piston for reduced operating temperatures, and allows quick and easy damping changes for the ultimate in shock tunability in varying terrain and vehicle loads, to keep you controlled and comfortable. Enjoy the ride...

Features and Specifications:

  • 10 Stage High Speed Compression Adjustment
  • 20 Stage Low Speed Compression Adjustment
  • 15 Stage Rebound Adjustment
  • 50 / 60mm CNC Machined High Flow Billet Aluminium Race Piston
  • Lightweight CNC Machined Low Friction floating piston
  • TSUGAMI™ CNC machined components for precise tolerances
  • CNC TIG Precision Welded Body End Mounts
  • 60mm 6063 Aluminium Remote Reservoir
  • Upgraded 3 Stage FKM-HNBR Sealing System
  • Fully Rebuild-able Design
  • 5140 HV900 Hard Chrome Plated, Heat treated 18 / 22mm Micro- Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
  • Direct Bolt-On Design
  • 3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D. shock Body Precision Honed to +/- 0.04mm
  • High Quality O.E.M. Grade Natural Rubber Bushings
  • Parker™ Braided High Pressure Hoses
  • EDP Surface Protection
  • Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Toyota
Model
Landcruiser
Series
78 Series - 09/1999 on
79 Series - 09/1999 on
Brand
Dobinsons
Shock Type
Dobinsons MRA
Product Type
Full Lift Kit
Lift Height
75mm
