Toyota Landcruiser 100 Series (1998 to 11/2007) - Dobinsons Monotube Remote Reservoir nonadjustable (MRR) Lift Kit
Type: Landcruiser
Model: 100 Series HDJ100, HZJ100, UZJ100
Year: 1998 to 11/2007
Suspension Type: Torsion Bar Front / Leaf Spring Rear
Rear Lift: 30mm
Detail: Petrol & Diesel,
Independent Front Suspension
Nonadjustable Remote Reservoir (MRR)

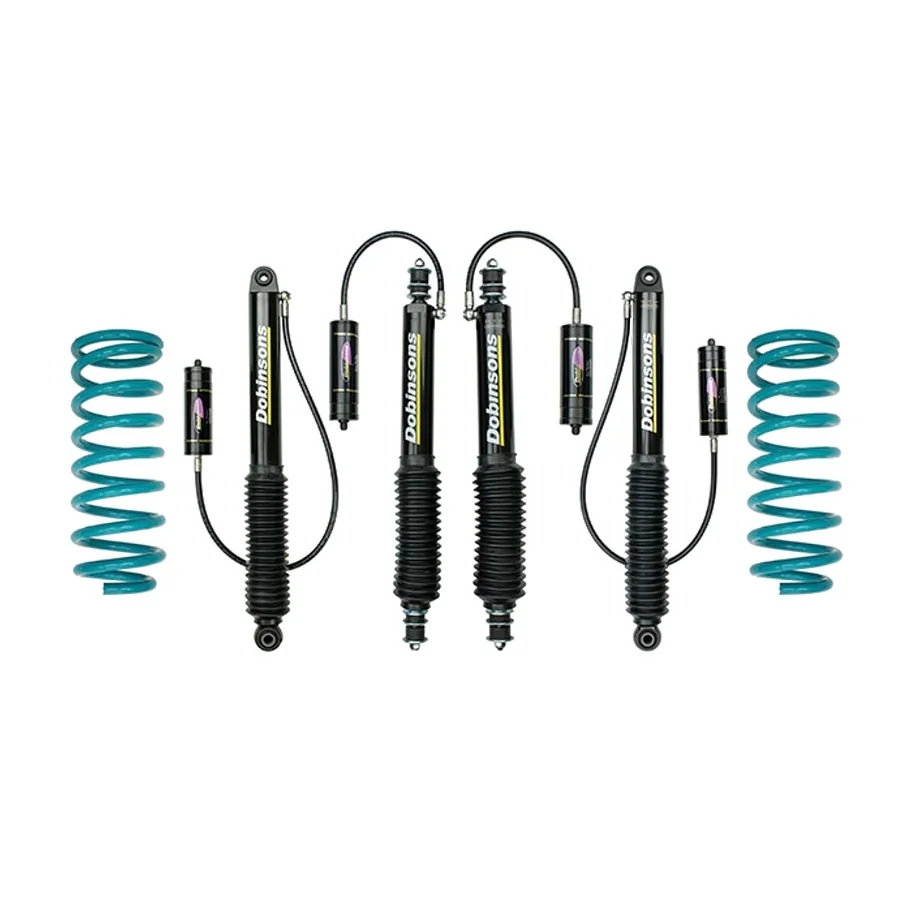

The kit contains:
- 2x MR59-60782 - Monotube Remote Reservoir nonadjustable Front Shock absorbers
- 2x MR59-60682 - Monotube Remote Reservoir nonadjustable Rear Shock absorbers
- 2x Dobinsons Rear Coil Springs
Recommended Upgrades:
- 1x TB59-1600 - Torsion Bars (Pair) - V8 Petrol - Length 1160mm
- 1x TB59-1610 - Torsion Bars (Pair) - Diesel/Turbo Diesel/6 Cyl. Petrol - Length 1210mm
Optional Upgrades:
- 1x UCA59-006K - Upper Control Arms - (Pair) Chrome-Moly Tubular 3º Castor Built In Rubber Bushes with Ball Joint
* Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment - 1x DD59-532K - Diff Drop Kit
* Recommended When Lifting Above 50mm to Improve CV Angle and Wear
Type: Landcruiser
Model: 100 Series HDJ100, HZJ100, UZJ100
Year: 1998 to 11/2007
Suspension Type: Torsion Bar Front / Leaf Spring Rear
Rear Lift: 30mm
Detail: Petrol & Diesel,
Independent Front Suspension
Nonadjustable Remote Reservoir (MRR)
Monotube Remote Reservoir nonadjustable (MRR) shock absorbers
With serious 4x4 owners now pushing their vehicles through harder, harsher terrain with more accessories fitted to their 4x4’s than ever before Dobinsons saw the need for a no compromise, performance engineered shock absorber that offers the ultimate in performance.
Over four years of research, development and testing was undertaken to produce Dobinsons Monotube Remote Reservoir shock absorbers. Dobinsons MRR Series introduces premium quality build design and features to achieve the ultimate in performance and durability.
50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfect housing for an enormous oil capacity and surface area to resist shock fade and maintain vehicle handling.
Unlike some other brands, each Dobinsons shock absorber is designed specifically for the vehicle and application and is designed to perform best when matched with Dobinsons Coil Springs. In some cases multiple options are available to ensure the best possible ride, handling, comfort and performance is achieved for the complete suspension system.
Features and Specifications:
- Massive 56mm & 66mm Outer Body
- External Remote Oil Reservoir
- 3mm Heavy Duty Wall Thickness
- Monster 50mm & 60mm Bore
- Direct Bolt-on Design
- Triple Lip Oil Seal
- Fully Rebuildable Design
- Vehicle Specific Valving
- EDP Surface Protection
- Natural Rubber Bushings
Important Notes for setting up your Vehicle Correctly:
- When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
- Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
- Please do not put Occasional Loads into your "Constant" Load determinations.
- Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.
Please Note:
- All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.
