TOYOTA LANDCRUISER 79 SERIES (09/1999 ON) - DOBINSONS MONOTUBE REMOTE RESERVOIR NONADJUSTABLE (MRR) LIFT KIT 2

Toyota Landcruiser 78 Series (09/1999 on) - Dobinsons Monotube Remote Reservoir nonadjustable (MRR) Lift Kit

Type: Landcruiser

Model: 78 Series FZJ78 - HZJ78 - VDJ78

Year: 09/1999 on

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 45mm

Rear Lift: 50mm

Detail: Troop Carrier
Nonadjustable Remote Reservoir (MRR)

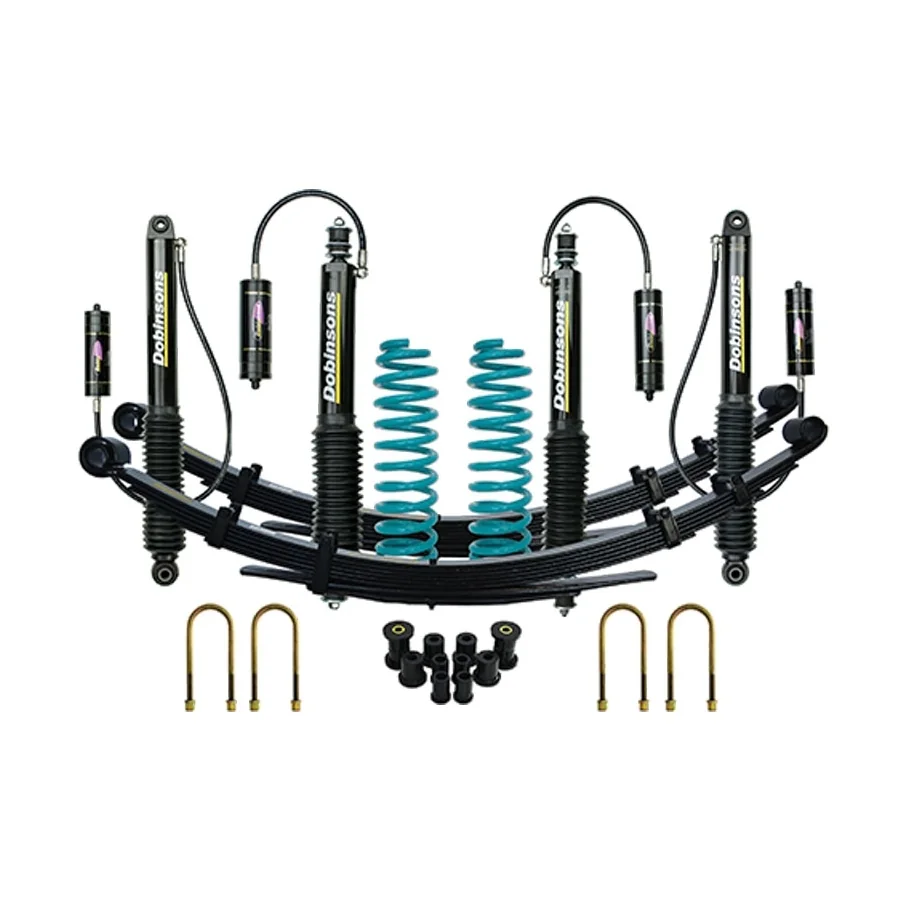

The kit contains:

  • 2x Dobinsons Front Coil Springs
  • 2x MR45-60114 - Monotube Remote Reservoir nonadjustable Front Shock absorbers
    Adjustable Spring Seat Height X = 222mm / 8.74"
  • 2x MR45-60115 - Monotube Remote Reservoir nonadjustable Rear Shock absorbers
  • 4x UB59-416 - U Bolt Kit
  • 1x Polyurethane Leaf Spring Bush kit
    - PB59-1090K - Bush kit models up to 07/2009
    - PB59-1100K - Bush kit models 08/2009 on (Air Bag Dash)
  • 1x BA59-001 - Brake Adjuster
  • 2x Dobinsons Rear Coil Springs

Recommended Upgrades:

  • 2x SK59-051 - Greasable Shackles & 2x Greasable Shackle Pins
    - SP59-044 - up to 07/2009
    - SP59-057 - up to 08/2009 on (Air Bag Dash)
  • 1x RB59-548K - Castor Kit
    * Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.
  • 1x WA59-544K - ABS Cable Bracket Kit
    * Must Be Fitted To Vehicles With ABS Brakes
  • 1x WA59-543K - Adjustable Sway Bar Extension (Suits 2" to 4" Lift)
    * Must Be Fitted For Tail-Shaft/Swaybar Clearance

Optional Upgrades:

  • 1x SD59-824 - Steering Damper - FZJ79,HZJ79 (to 04/2007)
  • 1x SS59A824 - Adjustable Performance Remote Reservoir Damper - FZJ79,HZJ79 (to 04/2007)
  • 1x SD59-825 - Steering Damper - FZJ79,HZJ79,VDJ79 (04/2007 on)
  • 1x PR59-1418 - Adjustable Panhard Rod - Right Hand Drive V8 Dual Cab & Single Cab to 07-08/16
    * Approx 940mm Long Centre of Bush to Centre of Bush (Complete with Bushes)
  • 1x PR59-1420 - Adjustable Panhard Rod - Right Hand Drive 6 Cyl & Single Cab V8 09/16 on
    * Approx 810mm Long Centre of Bush to Centre of Bush (Complete with Bushes)
  • 1x RM59-041 - Reservoir Mounting Bracket Kit
    * Optimal Remote Reservoir Fitment,Positioning & Strength
Customise your kit below:
* Front Load Options
* Rear Load Options
* Bush kit model year
* Select your upgrades
Upgrade Cost: 0
$2,690.00
Tax included
$3,206.00
$516.00
Quantity
 Calculate Shipping Cost

Type: Landcruiser

Model: 78 Series FZJ78 - HZJ78 - VDJ78

Year: 09/1999 on

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 45mm

Rear Lift: 50mm

Detail: Troop Carrier
Nonadjustable Remote Reservoir (MRR)


Monotube Remote Reservoir nonadjustable (MRR) shock absorbers

With serious 4x4 owners now pushing their vehicles through harder, harsher terrain with more accessories fitted to their 4x4’s than ever before Dobinsons saw the need for a no compromise, performance engineered shock absorber that offers the ultimate in performance.

Over four years of research, development and testing was undertaken to produce Dobinsons Monotube Remote Reservoir shock absorbers. Dobinsons MRR Series introduces premium quality build design and features to achieve the ultimate in performance and durability.

50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfect housing for an enormous oil capacity and surface area to resist shock fade and maintain vehicle handling.

Unlike some other brands, each Dobinsons shock absorber is designed specifically for the vehicle and application and is designed to perform best when matched with Dobinsons Coil Springs. In some cases multiple options are available to ensure the best possible ride, handling, comfort and performance is achieved for the complete suspension system.

Features and Specifications:

  • Massive 56mm & 66mm Outer Body
  • External Remote Oil Reservoir
  • 3mm Heavy Duty Wall Thickness
  • Monster 50mm & 60mm Bore
  • Direct Bolt-on Design
  • Triple Lip Oil Seal
  • Fully Rebuildable Design
  • Vehicle Specific Valving
  • EDP Surface Protection
  • Natural Rubber Bushings

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Toyota
Model
Landcruiser
Series
78 Series - 09/1999 on
Brand
Dobinsons
Shock Type
Dobinsons MRR
Type
Full Lift Kit
Lift Height
40-50mm
