ISUZU MU-X (07/2021 ONWARDS) - TOUGH DOG 40MM ADJUSTABLE LIFT KIT - PREASSEMBLED STRUTS

Isuzu MU-X (07/2021 onwards) - Tough Dog 40mm Adjustable Lift Kit - Preassembled Struts

Tough Dog

Type: MU-X

Year: 07/2021 onwards

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 40mm

Rear Lift: 40mm

Detail: 40mm Bore Adjustable Shock
Front Preassembled Struts & Coils

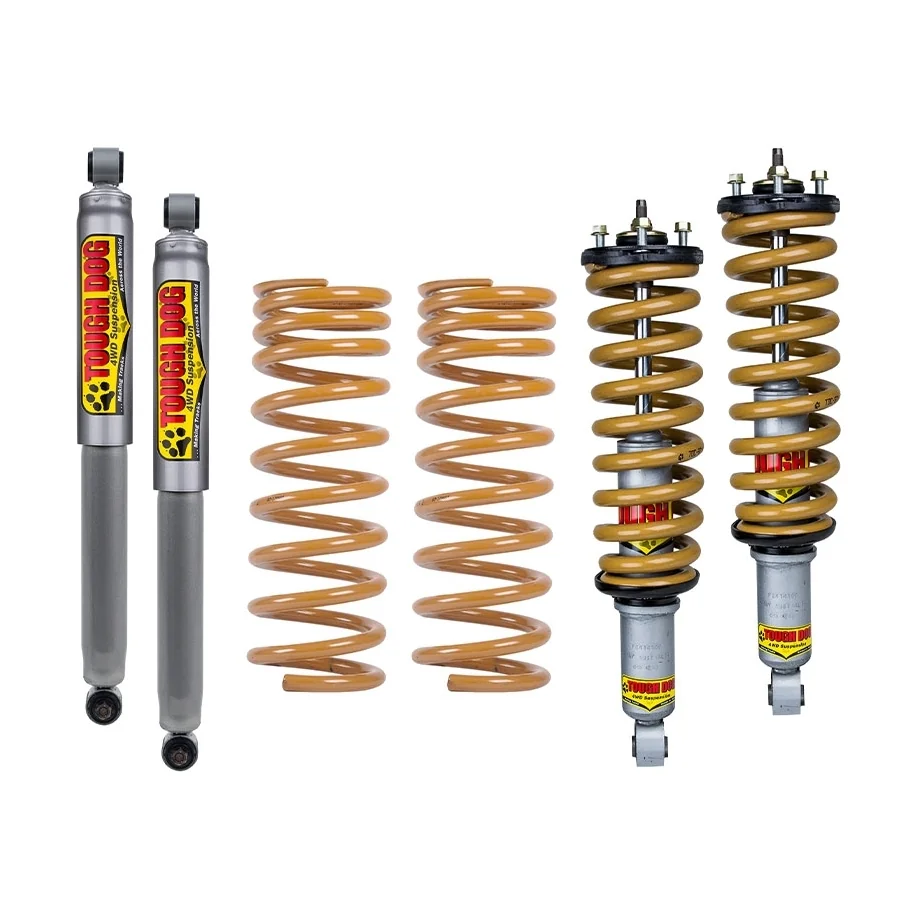

The kit contains:

  • 2x Tough Dog 40mm Adjustable - Front Preassembled Strut & Coils
  • 2x BM401125 - Tough Dog 40mm Adjustable Rear Shocks
  • 2x Tough Dog Rear Coil Springs

Recommended Upgrades:

  • 1x TDAA-005 - Coil Insert Airbags
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$1,912.00
Tax included
Quantity
 Calculate Shipping Cost

Type: MU-X

Year: 07/2021 onwards

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 40mm

Rear Lift: 40mm

Detail: 40mm Bore Adjustable Shock
Front Preassembled Struts & Coils


40mm Bore Adjustable Shock Absorbers

The 40mm adjustable shock brings the ability to fine tune your ride control to just about every 4WD user. The shock offers 9 different stages of adjustment, to fine tune the ride characteristics to your personal preference and application.

Features:

  • 40mm internal bore
  • 60mm external casing
  • 18mm chrome-plated rod
  • High temperature, all weather oil
  • Foam cell
  • 9 Stage external adjustment
  • Additional welding on all studs and eye rings
  • 4 Year / unlimited km Recreational warranty (Conditions Apply)
  • 3 Year / unlimited km Commercial warranty (Conditions Apply)

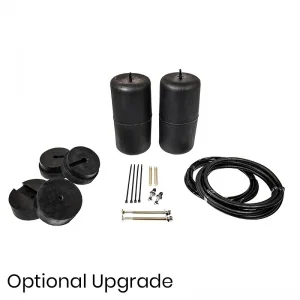

Coil Insert AirbagsCOILINSERT_product

When carrying varying loads or heavy towing, Air Assist coil insert kits can help level off vehicles. By increasing the air pressure, the coil insert kit increases the effective spring rate and levels the vehicle. The high pressure bag is inserted inside the coil spring and assists the coil spring when necessary.

This Vehicle Part No: TDAA-005


Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Isuzu
Model
MU-X
Series
UCS40 - Mid 2021 on
Brand
Tough Dog
Shock Type
Tough Dog 40mm Adjustable
Type
Full Lift Kit
Lift Height
40-50mm
