Dodge Ram 1500 - DS (2013 On) - Tough Dog 41mm Foam Cell Lift Kit - Preassembled Struts

Name: Dodge Ram 1500 - DS (2013 On) - Tough Dog 41mm Foam Cell Lift Kit - Preassembled Struts
Brand: Tough Dog
SKU: 262
Price: 2202.75 AUD
Availability: InStock

Brand: Tough Dog

Type: Ram

Model: 1500 - DS

Year: 2013 On

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 50mm

Rear Lift: 50mm

Detail: 41mm Internal Bore Foam Cell
Front Preassembled Struts & Coils

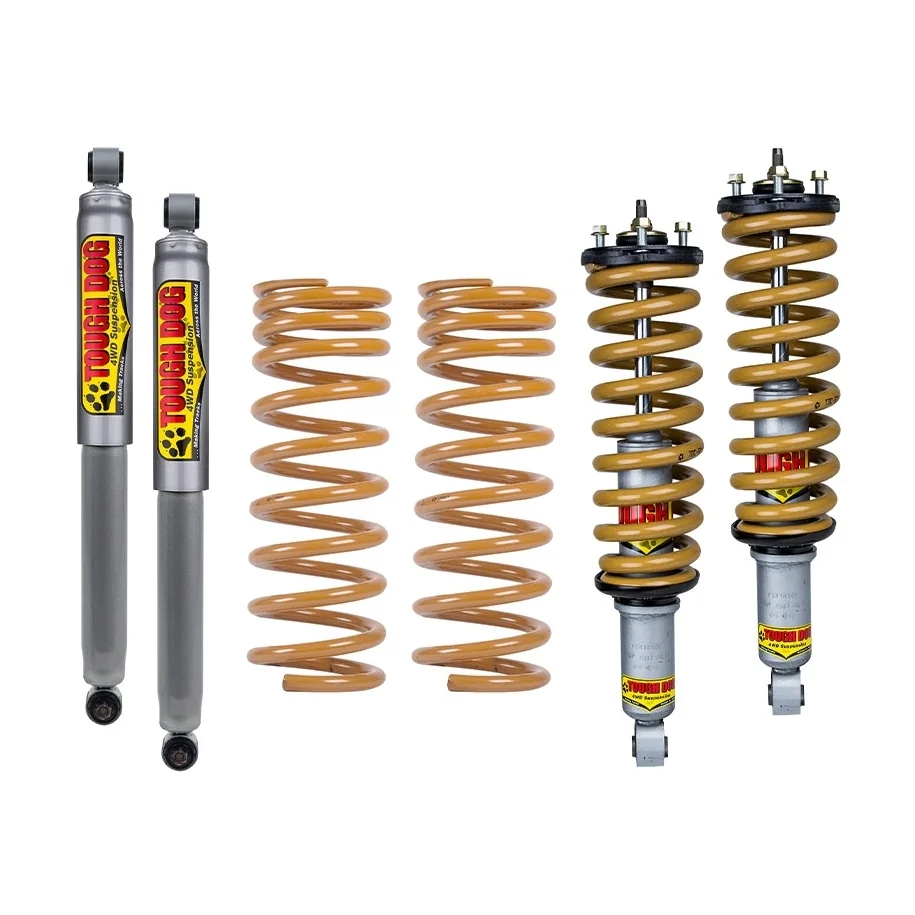

The kit contains:

2x Tough Dog 41mm Foam Cell - Front Preassembled Strut & Coils
2x FC43033 - Tough Dog 41mm Foam Cell Rear Shocks
1x TDSP-021 - Swaybar Relocation Bracket
2x Tough Dog Rear Coil Springs

Recommended Upgrades:

1x TDPR-026 - Adjustable panhard rods
1x TDAA-025 - Coil Insert Airbags
1x TDAS-002 - Wireless Air kit

FAQs
Weight Guide

Q: How should I set up my suspension for my 4x4 vehicle?

A: The best approach is to configure your 4x4 suspension based on what you will primarily use the vehicle for about 80% of the time. Finding the right suspension kit involves striking a balance and choosing one that aligns with the main purpose of your vehicle.

Q: What should I consider when choosing a suspension kit?

A: When selecting a suspension kit, consider the primary use of your 4x4 vehicle. Here are some scenarios to guide you:

- General Driving and Off-Road Adventures: For regular driving and occasional off-road adventures, opt for a balanced suspension kit that offers a comfortable ride and reasonable off-road performance. Heavy-duty kits might be unnecessary and lead to a stiffer ride.

- Towing: If you plan to tow a caravan or boat occasionally, consider installing an airbag set up. This setup provides a better compromise compared to choosing extra heavy-duty coils, which may result in a harsh ride and elevated rear suspension height when not towing.

- Tradesman or Mining Vehicle: For vehicles that are constantly loaded due to tradesman or mining purposes, a heavy-duty suspension set up is more appropriate. This setup ensures your 4x4 can handle the consistent load efficiently.

Q: What issues may arise from choosing the wrong suspension setup?

A: Selecting the wrong suspension setup can lead to several issues:

- Uncomfortable Ride: Installing a heavy-duty suspension kit for occasional heavy loads can make the vehicle's ride uncomfortably stiff when it's not carrying a significant load.

- Negative Impact on Components: Inappropriately heavy suspension setups can put unnecessary strain on other suspension components, potentially causing premature wear and damage.

- Rear Suspension Height: Incorrectly chosen setups can cause the rear of the vehicle to sit too high or too low, affecting stability and handling.

Q: What should I consider if I've replaced the factory tub with a tray on my vehicle?

A: If you've replaced the factory tub with a steel or alloy tray, consider the additional weight factor when calculating the total load. Take into account the weight of toolboxes, tools, and equipment that will be carried regularly.

Remember, the key to setting up your 4x4 suspension lies in understanding your vehicle's primary usage and finding a suspension kit that strikes the right balance for your needs. Consulting with suspension experts can also help you make an informed decision and ensure optimal performance and comfort for your off-road adventures.

Accessories vary in weight depending on the manufacturer and the purpose of the accessories. We have put together a list below of what an average accessory would weigh.

(**please note this is for guidance purposes only**)

Accessory	Type	Weight (kg)
Nudge Bar	Vehicle Protection	14
Bull Bar (Steel)	Vehicle Protection	60
Bull Bar (Aluminium)	Vehicle Protection	40
Side Bar	Vehicle Protection	16
Side Step (Steel)	Vehicle Protection	40
Rear Bar (Aftermarket)	Vehicle Protection	50
Winch (Synthetic Rope)	Winches	25
Winch (Steel Cable)	Winches	45
Roof Tray (Steel) Full Length - Empty	Roof Top	60
Roof Tray (Alloy) Full Length - Empty	Roof Top	30
Roof Top Tent	Roof Top	70
Underbody Guard (Front)	Underbody Guards	13
Underbody Guard (Transmission)	Underbody Guards	10
Underbody Guard (Sump)	Underbody Guards	7.5
Underbody Guard (Transfer)	Underbody Guards	10
Awning	Other Accessories	12
Recovery Jack	Other Accessories	16
HD Recovery Kit	Other Accessories	20
Second Battery	Other Accessories	30
Driving Light	Other Accessories	3
Tool Box Alloy (Empty)	Other Accessories	50
80L Fridge (Empty)	Other Accessories	35
Wagon - Rear Tyre Carrier (No Tyre)	Other Accessories	20
Spare Wheel	Other Accessories	40
Drawer System	Other Accessories	100
Fuel Tank (Long Range)	Other Accessories	90
Tray (Steel) UTE	Other Accessories	200
Tray (Aluminium) UTE	Other Accessories	100

Customise your kit below:

* Front Load Options

* Rear Load Options

* Select your upgrades

No Upgrades

Add Bellow Coil Insert TDAA-025 ($435.00)

Add Wireless Air kit - TDAS-002 ($1,700.00)

Add Adjustable panhard rods - TDPR-026 ($305.00)

Upgrade Cost: 0

$2,447.50

$2,202.75 Save 10%

Tax included

Calculate Shipping Cost

Description
Product Details

Type: Ram

Model: 1500 - DS

Year: 2013 On

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 50mm

Rear Lift: 50mm

Detail: 41mm Internal Bore Foam Cell
Front Preassembled Struts & Coils

Foam Cell Shock Absorbers

Tough Dogs award winning Foam Cell shock is our best selling shock for all round performance. Whether you head bush on the occasional weekend or for the majority of the year, Foam Cell shocks will handle your application.

Features:

Twin tube design
High temperature, all weather oil
18mm, double chrome-plated rod
Additional welding on all studs & eyerings
Multi stage Velocity Sensitive Valving
Rod wiper seal and multi lip seal
Hydraulic rebound stop
4 Year / unlimited km Recreational warranty (Conditions Apply)
3 Year / unlimited km Commercial warranty (Conditions Apply)

Panhard Rod Rear

Adjustable panhard rods allow the axle to be re-centred under the vehicle after the height has been modified. Tough Dog panhard rods are bent from a single solid bar for strength, and are adjustable to cover a broad range of vehicle heights.

This Vehicle Part No: TDPR-026

Wireless Air

Offering a built-in air compressor for your air bag system, the Tough Dog Wireless Air kit allows you to adjust the pressure in the air bags on the fly, thus providing the perfect amount of pressure in the bags depending on your requirement. The system also allows you to adjust each airbag individually, catering for vehicles with uneven loads. The Wireless Air Kit can be controlled by a user-friendly LCD wireless controller or the intuitive wireless app that can be programmed with user-defined presets and enables frequently used pressures to be saved. The kit has been designed to be easily installed and only requires a battery to be hooked up.

This Vehicle Part No: TDAS-002

Coil Insert Airbags

When carrying varying loads or heavy towing, Air Assist coil insert kits can help level off vehicles. By increasing the air pressure, the coil insert kit increases the effective spring rate and levels the vehicle. The high pressure bag is inserted inside the coil spring and assists the coil spring when necessary.

This Vehicle Part No: TDAA-025

Important Notes for setting up your Vehicle Correctly:

When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
Please do not put Occasional Loads into your "Constant" Load determinations.
Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.
