Toyota Prado 150 Series Dobinsons MRR Lift Kit

Toyota Landcruiser Prado 150 Series (2010 on) - Dobinsons Monotube Remote Reservoir nonadjustable (MRR) Lift Kit

Type: Landcruiser Prado

Model: 150 Series KDJ150 / GRJ150 / KDJ155

Year: 2010 on

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 30-40mm

Rear Lift: 20-50mm

Detail: SWB & LWB Wagon
Does Not Suit Models with Self-Levelling Suspension
Nonadjustable Remote Reservoir (MRR)

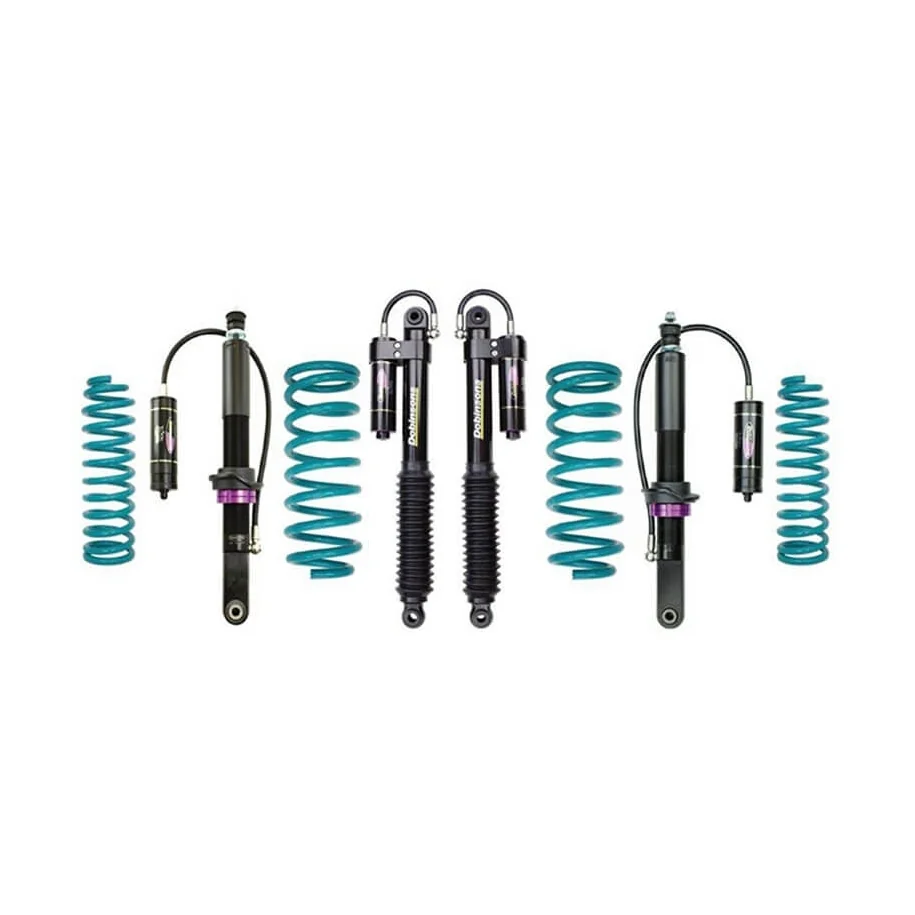

The kit contains:

  • 2x Dobinsons Front Coil Springs
  • 2x MR59-50700 - Monotube Remote Reservoir nonadjustable Front Shock absorbers
    * Adjustable Spring Seat Height X = 213mm / 8.38"
  • 2x MR59-50701 - Monotube Remote Reservoir nonadjustable Rear Shock absorbers
  • 2x Dobinsons Rear Coil Springs

Recommended Upgrades:

  • Coil and Strut Assembly with new strut tops SC59-001 - Strut tops
  • 1x SE59-535K - Sway Bar Relocation Kit (Front)
  • 2x SE59-529 - Extended Swaybar Link (Rear)
    * Suits 2" to 4" Lift

Optional Upgrades:

  • 1x WA59-561K - Airbag Conversion Kit (Removes Airbags To Allow Coil Spring Fitment)
    * Adds Additional 15mm To Listed Lift Heights.
  • 1x RM59-014 - Reservoir Mounting Bracket Kit (Rear Shocks - MRR & MRA Only)
    Optimal Remote Reservoir Fitment,Positioning & Strength
  • 1x UCA59-002K - Front - Upper Control Arm (Pair) Chrome-Moly Tubular - 3º Castor Built In - Rubber Bushes - with Ball Joint
    * Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment
  • 1x UCA59-202K - Front - Upper Control Arm (Pair) Forged Aluminium - Adjustable Camber - Increased Castor - With Ball Joint
    * Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment
  • 1x DD59-527K - Diff Drop Kit
    * Must Fit When Raising Vehicle Above 50mm
  • 1x WA59-522K - Rear - Upper Control Arm - Heavy Duty Rear Upper - Adjustable Control Arms (Pair) - Complete With Bushes
    * Designed For More Articulation
  • 1x WA59-520K - Rear - Lower Control Arm - Heavy Duty Rear Lower - Adjustable Control Arms (Pair) - Complete With Bushes
    * Designed For More Articulation
  • 1x PR59-1423 - Adjustable Panhard Rod (Complete with Bushes)
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$2,040.50
$2,040.50
$1,836.45 Save 10%
Tax included
$2,124.00
$287.55
Quantity
 Calculate Shipping Cost

Type: Landcruiser Prado

Model: 150 Series KDJ150 / GRJ150 / KDJ155

Year: 2010 on

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 30-40mm

Rear Lift: 20-50mm

Detail: SWB & LWB Wagon
Does Not Suit Models with Self-Levelling Suspension
Nonadjustable Remote Reservoir (MRR)


KDSS = KINETIC DYNAMIC SUSPENSION SYSTEM

Does Not Suit Models with Self-Levelling Suspension


Monotube Remote Reservoir nonadjustable (MRR) shock absorbers

With serious 4x4 owners now pushing their vehicles through harder, harsher terrain with more accessories fitted to their 4x4’s than ever before Dobinsons saw the need for a no compromise, performance engineered shock absorber that offers the ultimate in performance.

Over four years of research, development and testing was undertaken to produce Dobinsons Monotube Remote Reservoir shock absorbers. Dobinsons MRR Series introduces premium quality build design and features to achieve the ultimate in performance and durability.

50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfect housing for an enormous oil capacity and surface area to resist shock fade and maintain vehicle handling.

Unlike some other brands, each Dobinsons shock absorber is designed specifically for the vehicle and application and is designed to perform best when matched with Dobinsons Coil Springs. In some cases multiple options are available to ensure the best possible ride, handling, comfort and performance is achieved for the complete suspension system.

Features and Specifications:

  • Massive 56mm & 66mm Outer Body
  • External Remote Oil Reservoir
  • 3mm Heavy Duty Wall Thickness
  • Monster 50mm & 60mm Bore
  • Direct Bolt-on Design
  • Triple Lip Oil Seal
  • Fully Rebuildable Design
  • Vehicle Specific Valving
  • EDP Surface Protection
  • Natural Rubber Bushings

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Toyota
Model
Prado
Series
150 Series - 2010 on
Brand
Dobinsons
Shock Type
Dobinsons MRR
Product Type
Full Lift Kit
Lift Height
40-50mm
