TOYOTA PRADO 120 SERIES (2003 ON) - RAW NITRO MAX LIFT KIT - PREASSEMBLED STRUTS

Toyota Prado 120 Series (2003 on) - Raw Nitro Max Lift Kit - Preassembled Struts

Raw 4x4

Type: Prado

Model: 120 Series GRJ120 (4.0L V6), KDJ120 / 121, KZJ120

Year: 2003 on

Front Lift: 40mm

Rear Lift: 40mm

Detail: LWB & SWB Wagon
Front Preassembled Strut & Coils
Extra Heavy Duty - Nitro Max
45mm Bore Nitrogen Gas Technology
Air Suspension to Coil Conversion 40mm Lift - RC-2471K (Rear Coils Selection)

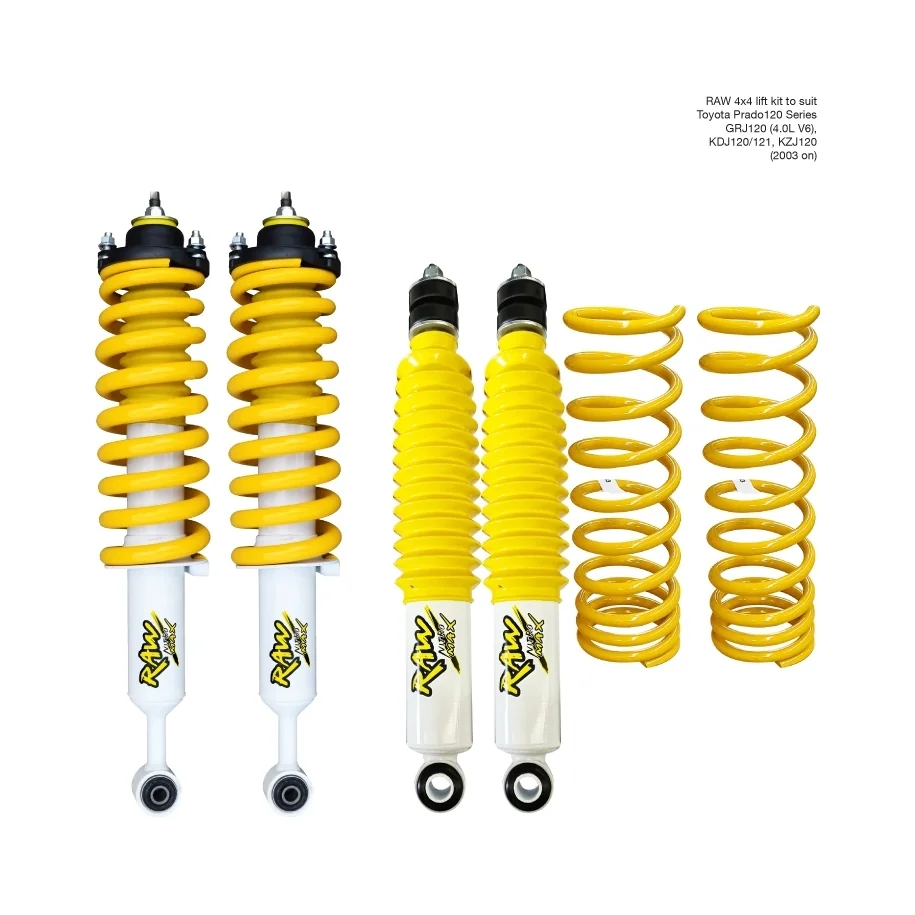

The kit contains:

  • 2x Raw Nitro Max - Front Preassembled Strut & Coils
  • 2x NM540 - Raw Nitro Max Rear Shocks
  • 2x Raw Rear Coil Springs
Customise your kit below:
* Front Load Options
* Rear Load Options
Upgrade Cost: 0
$1,595.00
$1,595.00
$1,435.50 Save 10%
Tax included
$1,640.00
$204.50
Quantity
 Calculate Shipping Cost

Type: Prado

Model: 120 Series GRJ120 (4.0L V6), KDJ120 / 121, KZJ120

Year: 2003 on

Front Lift: 40mm

Rear Lift: 40mm

Detail: LWB & SWB Wagon
Front Preassembled Strut & Coils
Extra Heavy Duty - Nitro Max
45mm Bore Nitrogen Gas Technology
Air Suspension to Coil Conversion 40mm Lift - RC-2471K (Rear Coils Selection)


NitroMax: Extra Heavy Duty Shocks & Struts

Specifically designed for heavy coil sprung and torsion bar vehicles, Nitro Max uses a proven truck shock absorber design with highly tuned valving for 4 x 4 applications carrying heavy loads and travel demanding terrain.

Recommended for vehicles used in mining, long distance touring, towing and heavy duty applications.

Features

Strong construction build to last

  • 360° welds with one piece eye rings and machine welded end caps for increased strength and durability.
  • Deep penetrating structural welds for stronger construction
  • Body and shield made of strong steel construction with extra thick tube for added endurance and strength

Engineered for Performance

Nitro Max achieve enhanced performance and longevity through:

  • Larger external body size
  • Low pressure nitrogen gas charged to resist fade
  • Improved dampening
  • High temperature oil
  • Seals resistant to elevated temperatures
  • Hydraulic stop at fully extended

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Toyota
Model
Prado
Series
120 Series - 2003 to 11/2009
Brand
Raw 4x4
Shock Type
Raw Nitro Max
Product Type
Full Lift Kit
Lift Height
40-50mm
