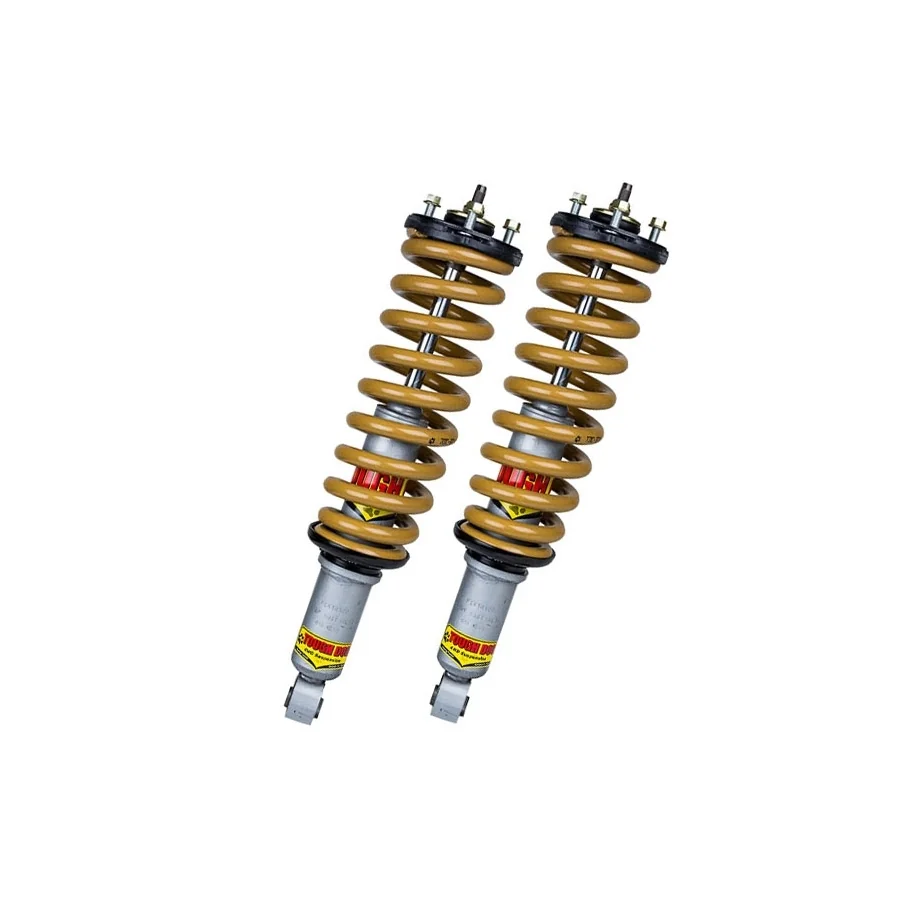

Toyota Prado 120 Series (2003 to 11/2009) - Tough Dog 40mm Adjustable Front Lift - Preassembled Struts

Type: Prado

Model: 120 Series LWB / SWB

Year: 2003 to 11/2009

Suspension Type: Coil Spring Front

Front Lift: 40mm

Detail: 40mm Bore Adjustable Shock
Front Preassembled Struts & Coils

40mm Bore Adjustable Shock Absorbers

The 40mm adjustable shock brings the ability to fine tune your ride control to just about every 4WD user. The shock offers 9 different stages of adjustment, to fine tune the ride characteristics to your personal preference and application.

Features:

• 40mm internal bore
• 60mm external casing
• 18mm chrome-plated rod
• High temperature, all weather oil
• Foam cell
• 9 Stage external adjustment
• Additional welding on all studs and eye rings
• 4 Year / unlimited km Recreational warranty (Conditions Apply)
• 3 Year / unlimited km Commercial warranty (Conditions Apply)

Important Notes for setting up your Vehicle Correctly:

• When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
• Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
• Please do not put Occasional Loads into your "Constant" Load determinations.
• Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

• All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.
