Nissan Patrol GQ (Y60) SWB Wagon (03/1988 - 1997) - Raw Nitro Max Lift Kit

Raw 4x4

Type: Patrol

Model: GQ (Y60) SWB Wagon

Year: 03/1988 - 1997

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 40mm

Rear Lift: 40mm

Detail: SWB Wagon
ENGINE: All Variants
Extra Heavy Duty - Nitro Max
45mm Bore Nitrogen Gas Technology

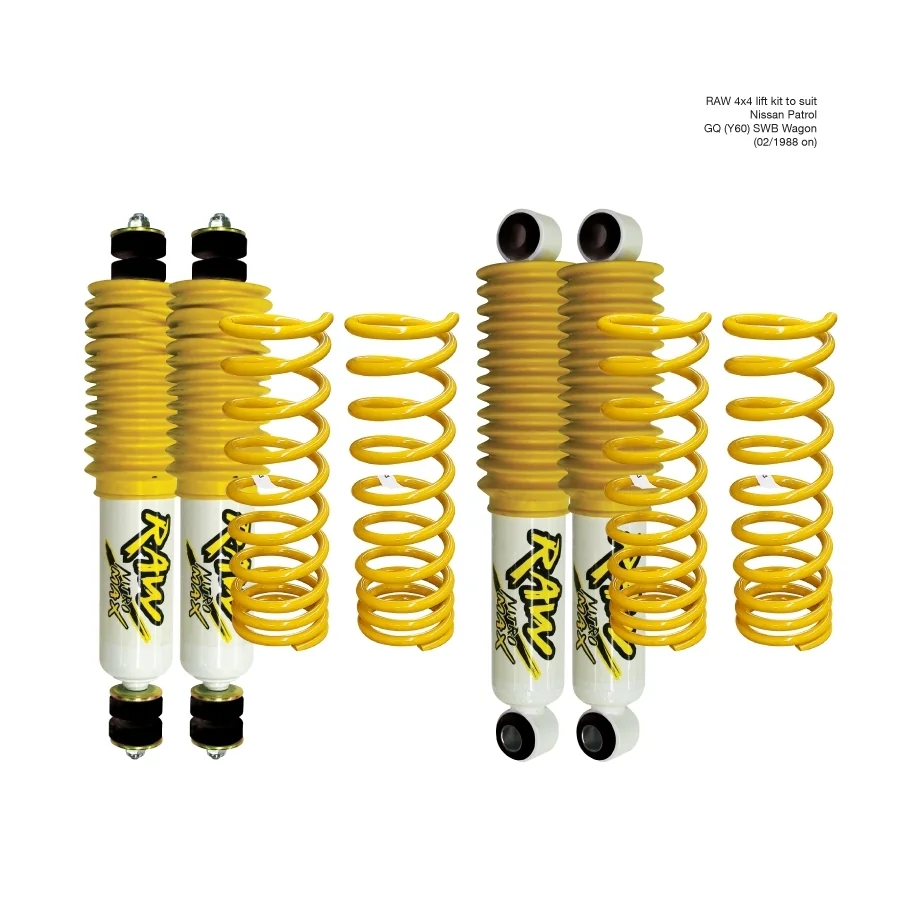

The kit contains:

  • 1x RC-0406 - Raw Front Coil Springs (Pair) - 0-35kg - 40mm Lift
  • 2x NM294 - Raw Nitro Max Front Shocks
  • 2x NM295 - Raw Nitro Max Rear Shocks
  • 1x RC-0506 - Rear Coil Springs (Pair) - 0-150kg - 40mm Lift

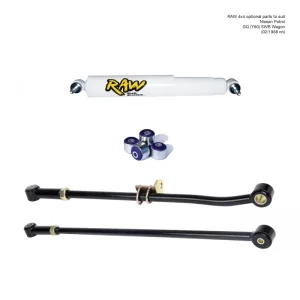

Recommended Upgrades:

  • 1x KPR004 - Front Adjustable Panhard Rod
    * Recommended fitment for vehicles with raised suspensions to prevent axle shift and increase stability.
  • 1x PDB1721K - Castor Bush Kit - Offset centre hole to increase Castor Setting
    * It is recommended that the following Castor Bush Kits be fitted to raised Suspensions
  • 1x SS232 - Steering Damper - 1987-08/1989 - 35mm Gas Cell Technology
  • 1x SS177 - Steering Damper - 09/1989 on - 35mm Gas Cell Technology
  • 1x KPR005 - Rear Adjustable Panhard Rod
    * Recommended fitment for vehicles with raised suspensions to prevent axle shift and increase stability.
Customise your kit below:
* Select your upgrades
Upgrade Cost: 0
$1,200.00
Tax included
$1,335.00
$135.00
Quantity
 Calculate Shipping Cost

Type: Patrol

Model: GQ (Y60) SWB Wagon

Year: 03/1988 - 1997

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 40mm

Rear Lift: 40mm

Detail: SWB Wagon
ENGINE: All Variants
Extra Heavy Duty - Nitro Max
45mm Bore Nitrogen Gas Technology


Nitro Max: Extra Heavy Duty Shocks & Struts

Specifically designed for heavy coil sprung and torsion bar vehicles, Nitro Max uses a proven truck shock absorber design with highly tuned valving for 4 x 4 applications carrying heavy loads and travel demanding terrain.

Recommended for vehicles used in mining, long distance touring, towing and heavy duty applications.

Features

Strong construction build to last

  • 360° welds with one piece eye rings and machine welded end caps for increased strength and durability.
  • Deep penetrating structural welds for stronger construction
  • Body and shield made of strong steel construction with extra thick tube for added endurance and strength

Engineered for Performance

Nitro Max achieve enhanced performance and longevity through:

  • Larger external body size
  • Low pressure nitrogen gas charged to resist fade
  • Improved dampening
  • High temperature oil
  • Seals resistant to elevated temperatures
  • Hydraulic stop at fully extended

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Nissan
Model
Patrol
Series
Y60 GQ (Wagon - Coil Rear) - 03/1988 - 1997
Brand
Raw 4x4
Shock Type
Raw Nitro Max
Type
Full Lift Kit
Lift Height
40-50mm
