Nissan Patrol GU Ute Coil Coil Dobinsons MRR Lift Kit

Nissan Patrol Y60 GQ / Y61 GU (GQ 1987 to 1998 / GU 1997 on) - Dobinsons Monotube Remote Res nonadjustable (MRR) Lift Kit 3"

Type: Patrol

Model: Y61 GU / Y60 GQ

Year: GU 1997 on / GQ 1987 to 1998

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 75mm

Rear Lift: 75mm

Detail: Wagon & Pickup / Utility
75mm (3” Lift)
Nonadjustable Remote Reservoir (MRR)
Series I,II,III,IV - 1997 to 2006
Series V - 2007 on

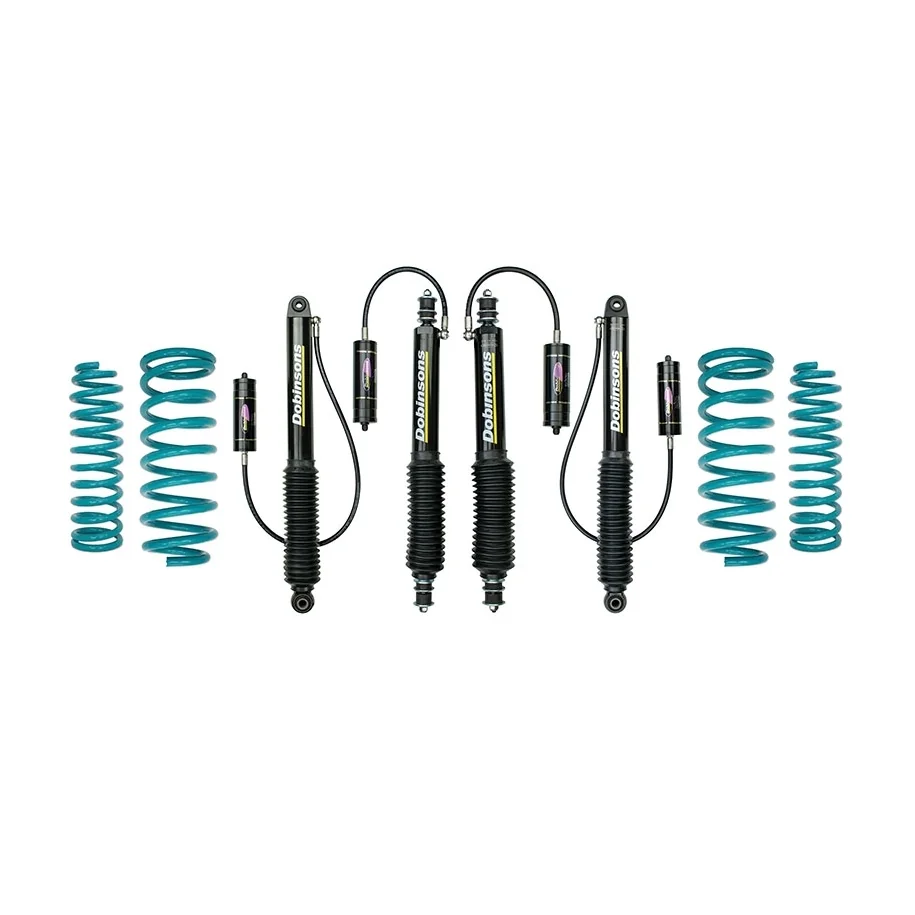

The kit contains:

  • 2x Dobinsons Front Coil Springs
  • 2x MR51-60116 - Monotube Remote Reservoir nonadjustable Front Shock absorbers
  • 2x MR45-60913 - Monotube Remote Reservoir nonadjustable Rear Shock absorbers
  • 1x BA45-005 - Break Proportioning Valve Extension
  • 2x Dobinsons Rear Coil Springs

Recommended Upgrades:

  • 1x SD51-811 - Steering Damper - 12/1997 to 02/2000 (Wagon) - 01/1999 on (Pickup)
  • 1x SD45-801 - Steering Damper - 02/2000 on (Wagon)
  • 1x RB59-522K - Castor Kit - Fixed Rubber Front Radius Arm Castor Kit Angle Setting: ±2.5° 4 x Rubber Eccentric Bushes
    Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.
  • 1x WA45-513K - 5° Castor Plate Kit (Suits Both Arms)
  • 1x PR45-1402 - Adjustable Panhard Rod (Front) - with Bushes to 02/2000 (Wagon) - 1992 on (Pickup)
  • 1x PR45-1416 - Adjustable Panhard Rod (Front) - with Ball Joint & Bush - 02/2000 on (Wagon)
  • 1x PR45-1403 - Adjustable Panhard Rod (REAR) - with Bushes to 02/2000 (Wagon) - 1992 on (Pickup)
  • 1x PR45-1415 - Adjustable Panhard Rod (REAR) - with Bushes 02/2000 on (Wagon)

Optional Upgrades:

  • 1x RM45-007 - Shock Absorber Bracket - MRR and MRA kits only
    * Recommended For Optimal Remote Reservoir Positioning And Fitment
    * Only For Use With MR45-60114
  • 1x SA45-1424 - GU Patrol 38mm Solid Adjustable Draglink
  • 1x SA45-1422 - GQ Patrol 38mm Solid Adjustable Draglink
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$1,960.00
Tax included
$2,290.00
$330.00
Quantity
 Calculate Shipping Cost

Type: Patrol

Model: Y61 GU / Y60 GQ

Year: GU 1997 on / GQ 1987 to 1998

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 75mm

Rear Lift: 75mm

Detail: Wagon & Pickup / Utility
75mm (3” Lift)
Nonadjustable Remote Reservoir (MRR)


Monotube Remote Reservoir nonadjustable (MRR) shock absorbers

With serious 4x4 owners now pushing their vehicles through harder, harsher terrain with more accessories fitted to their 4x4’s than ever before Dobinsons saw the need for a no compromise, performance engineered shock absorber that offers the ultimate in performance.

Over four years of research, development and testing was undertaken to produce Dobinsons Monotube Remote Reservoir shock absorbers. Dobinsons MRR Series introduces premium quality build design and features to achieve the ultimate in performance and durability.

50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfect housing for an enormous oil capacity and surface area to resist shock fade and maintain vehicle handling.

Unlike some other brands, each Dobinsons shock absorber is designed specifically for the vehicle and application and is designed to perform best when matched with Dobinsons Coil Springs. In some cases multiple options are available to ensure the best possible ride, handling, comfort and performance is achieved for the complete suspension system.

Features and Specifications:

  • Massive 56mm & 66mm Outer Body
  • External Remote Oil Reservoir
  • 3mm Heavy Duty Wall Thickness
  • Monster 50mm & 60mm Bore
  • Direct Bolt-on Design
  • Triple Lip Oil Seal
  • Fully Rebuildable Design
  • Vehicle Specific Valving
  • EDP Surface Protection
  • Natural Rubber Bushings

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Nissan
Model
Patrol
Series
Y60 GQ (Wagon - Coil Rear) - 03/1988 - 1997
Y60 GQ - (Pickup / Utility - Coil Rear) - 1992 to 05/1999
Y61 GU - (Pickup / Utility - Coil Rear) - 05/1999 on
Y61 GU - (Wagon - Coil Rear) - 12/1997 on
Brand
Dobinsons
Shock Type
Dobinsons MRR
Type
Full Lift Kit
Lift Height
75mm
