TOYOTA LANDCRUISER 75 SERIES (09/1990 - 1999) - DOBINSONS NITRO GAS LIFT KIT 2

Toyota Landcruiser 75 Series (1990 to 09/1999) - Dobinsons Twin Tube Nitro Gas Lift Kit

Type: Landcruiser

Model: 75 Series - FZJ75 - HZJ75

Year: 1990 to 09/1999

Suspension Type: Leaf Spring Front / Leaf Spring Rear

Front Lift: 45-50mm

Rear Lift: 50mm

Detail: Pickup
Troop Carrier - Disc Brake Rear End
Twin Tube Nitrogen Gas charged shock absorbers
Not for Model with Rear Drum Brake (Pre 10/1991)

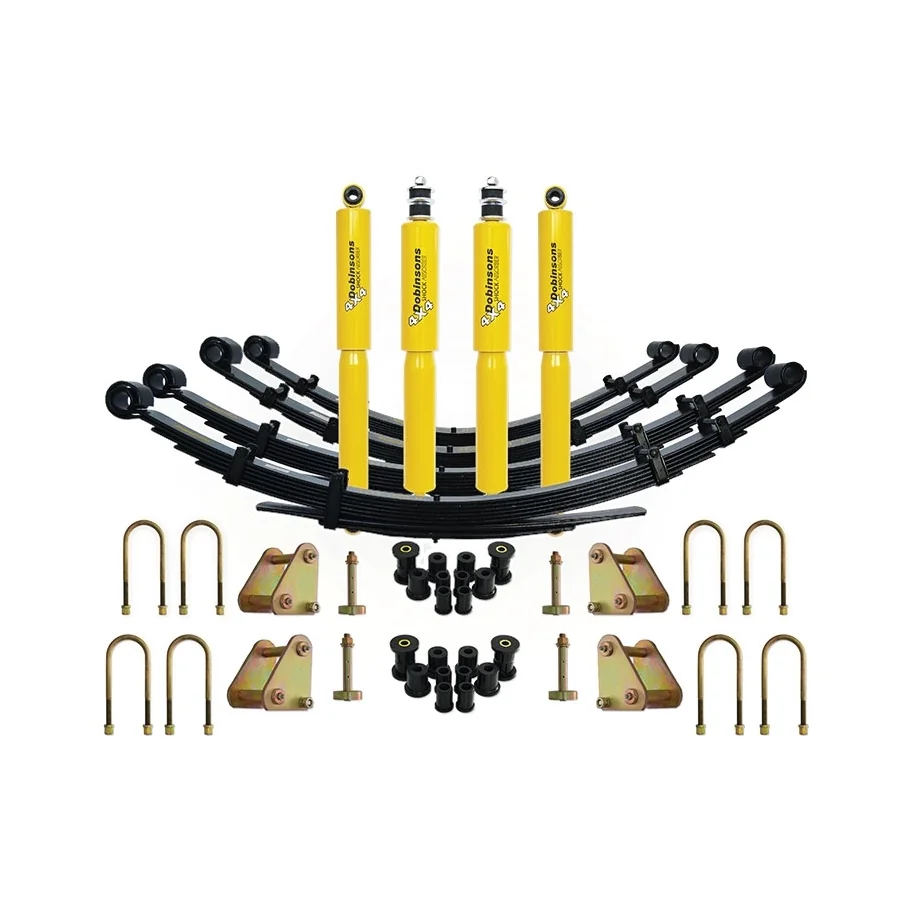

The kit contains:

  • 2x Dobinsons Front Leaf Springs
  • 2x GS59-637 - Twin Tube Nitro Gas Front Shock absorbers
  • 2x GS59-703 - Twin Tube Nitro Gas Rear Shock absorbers
  • 4x UB59-668 - U-Bolt Kit - Front
  • 4x UB59-453-1 - U-Bolt Kit - Rear
  • 1x PB59-1019K - Polyurethane Leaf Spring Bush Kit - Front
  • 1x PB59-1020K - Polyurethane Leaf Spring Bush Kit - Rear
  • 1x BA59-001 - Break Adjuster
    * Recommended when Raising Vehicle
  • 2x SK59-048 - Greasable Shackles - Right Hand Side
  • 2x SK59-047 - Greasable Shackles - Left Hand Side
  • 2x SP59-007 - Greasable Shackle Pins - Front
  • 2x SP59-023 - Greasable Shackle Pins - Rear
  • 2x Dobinsons Rear Leaf Springs

Optional Upgrades:

  • 1x SD59-824 - Steering Damper
  • 1x SS59A824 - Adjustable Performance Remote Reservoir Damper
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$2,380.00
Tax included
$3,232.00
$852.00
Quantity
 Calculate Shipping Cost

Type: Landcruiser

Model: 75 Series - FZJ75 - HZJ75

Year: 1990 to 09/1999

Suspension Type: Leaf Spring Front / Leaf Spring Rear

Front Lift: 45-50mm

Rear Lift: 50mm

Detail: Pickup
Troop Carrier - Disc Brake Rear End
Twin Tube Nitrogen Gas charged shock absorbers
Not for Model with Rear Drum Brake (Pre 10/1991)


Not for Model with Rear Drum Brake (Pre 10/1991)

Disc Brake Rear End


Twin Tube Nitro-Gas

Designed, developed and tested in Australia by Dobinsons Spring & Suspension, in house suspension design engineers, Dobinsons 4x4 shock absorbers are designed and tested to perform in the harshest conditions right across the world.

As Dobinsons Spring and Suspension export to over 40 countries worldwide from their Australian head office, the importance of quality is at the forefront in the complete design and manufacturing process. This ensures every shock can withstand the blistering heat and corrugations of the Australian outback right through to the subzero temperatures of a Russian winter.

Features:

  • Nitrogen Gas Charged
  • Superior Design
  • High Quality Parts
  • Manufacturing Process

Specifications:

  • Direct Bolt-In O.E Replacement
  • 35mm & 32mm Bore Size
  • Double Chromed 18mm Rod
  • 60mm & 51mm Body Size
  • High Quality Fuch's Oil
  • NOK Multi-Lip Seals
  • Teflon Piston Rings
  • Twin Tube Big-Bore Design
  • Vehicle & Weight Specific Valving
  • Natural Rubber Bushings

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Toyota
Model
Landcruiser
Series
75 Series - 1990 to 09/1999
Brand
Dobinsons
Shock Type
Dobinsons Nitro Gas
Kit Type
Full Lift Kit
Lift Height
40-50mm
