Toyota Hilux N70 (2005 to Mid 2015) - Dobinsons Monotube Remote Reservoir nonadjustable (MRR) Lift Kit 3"

(0) Reviews

The following parts are currently out of stock:

UCA59-203K - Forged Aluminium Upper Control Arms (Pair) Adjustable Camber Increased Castor With Ball Joint

UCA59-203K are due back in stock soon.

If you are still interested in ordering your kit with these parts please call to confirm the parts are back instock or check to see if we have an ETA on new stock.

Type: Hilux

Model: N70 Vigo - KUN/GGN 25/26,KZN 35/36

Year: 2005 to Mid 2015

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 75mm

Rear Lift: 50-75mm

Detail: 4x4 Single Cab
4x4 Extra Cab
4x4 Dual Cab
75mm (3” Lift)

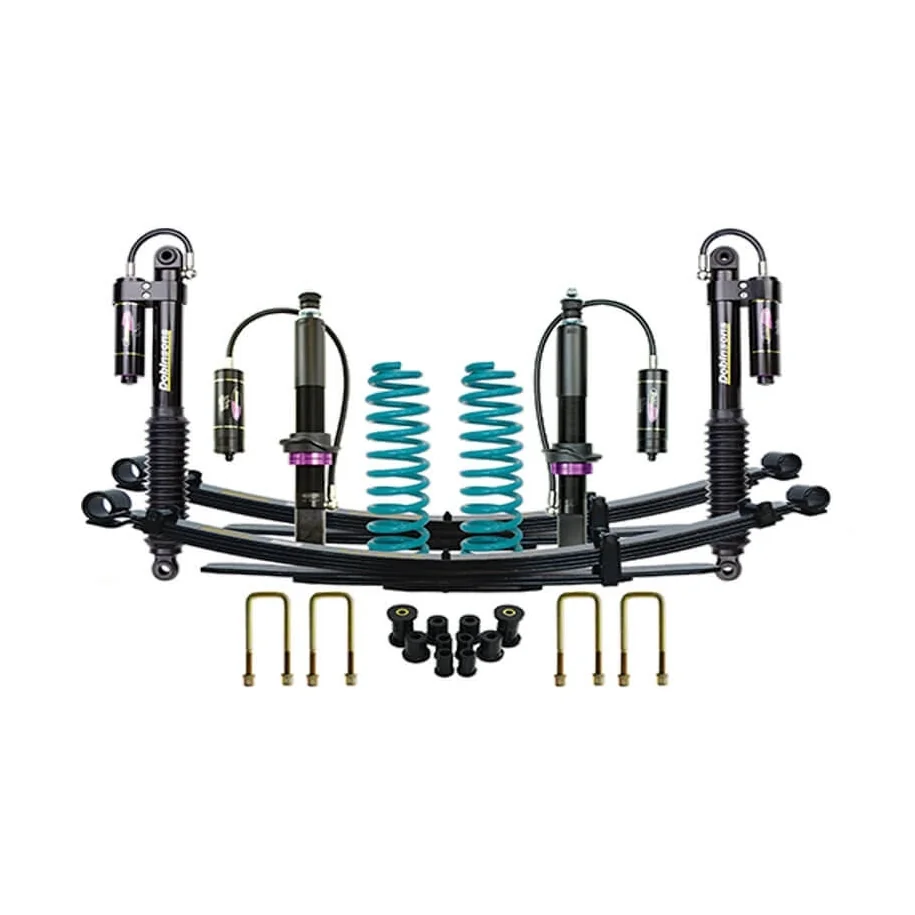

The kit contains:

2x Dobinsons Front Coil Springs
2x MR59-50220C - Monotube Remote Reservoir nonadjustable Front Shock absorbers
Adjustable Spring Seat Height - X = 226mm / 8.89"
2x MRR59-50649 - Monotube Remote Reservoir nonadjustable Rear Shock absorbers
1x PB59-1094K - Polyurethane Bush Kit
4x U Bolts
2x Dobinsons Rear Leaf Springs

Recommended Upgrades:

Coil and Strut Assembly with new strut tops SC59-001 - Strut tops
2x SK59-053 - Greasable Shackles & 2x SP59-060 - Greasable Shackle Pins
1x UCA59-003K - Upper Control Arm - (Pair) Chrome-Moly Tubular 3º Castor Built In Rubber Bushes with Ball Joint
1x UCA59-203K - Upper Control Arm Forged Aluminium - (Pair) Adjustable Camber & Castor Rubber Bushes With Ball Joint
1x DD59-538K - Full Diff Drop Kit
1x CV59-557K - High Clearance Inner C.V. Boot Kit
* Must Be Fitted For Lifts Over 50mm To Reduce C.V. Boot Wear.
1x CV59-554K - High Clearance Outer C.V. Boot Kit
* Must Be Fitted For Lifts Over 50mm To Reduce C.V. Boot Wear.

Optional Upgrades:

1x DD59-527K - Diff Drop Kit
1x RM59-004 - Shock Absorber Bracket - Vehicle specific Remote Reservoir Positioning And Fitment
* MRR and MRA shocks come with a generic mounting Bracket.
1x RR4733 - Airbag Man - Air Suspension Helper Kit for Leaf Springs

Customise your kit below:

$2,410.00

Tax included

RRP: $2,690.00

You save: $280.00

Quantity

100% secure payments

Front Strut and Coil Assembly^*

Greasable Pins & Shackles^*

Upper Control Arm Kit^*

Diff Drop Kit^*

Shock Absorber Bracket^*

Inner C.V. Boot Kit^*

Outer C.V. Boot Kit^*

Airbag Suspension Helper Kit (used for towing)^*

Front Load Options^*

Rear Leaf Spring Load Options^*

Calculate Shipping Cost

Shipping: 0

Postcode via Delivery address is residential

Type: Hilux

Model: N70 Vigo - KUN/GGN 25/26,KZN 35/36

Year: 2005 to Mid 2015

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 75mm

Rear Lift: 50-75mm

Detail: 4x4 Single Cab
4x4 Extra Cab
4x4 Dual Cab
75mm (3” Lift)

WARNING - 75MM (3”) OR HIGHER LIFT

The suspension components listed on this page are for off-road use only.

Refer to Local Laws before Fitting to Registered/Road Vehicles
An Engineering Certificate may be required
Handling Characteristics will Diminish on Lifts Above 50mm (2”)
Visit Dobinsons warranty page for more info - https://dobinsons.com/warranty

With serious 4x4 owners now pushing their vehicles through harder, harsher terrain with more accessories fitted to their 4x4’s than ever before Dobinsons saw the need for a no compromise, performance engineered shock absorber that offers the ultimate in performance.

Over four years of research, development and testing was undertaken to produce Dobinsons Monotube Remote Reservoir shock absorbers. Dobinsons MRR Series introduces premium quality build design and features to achieve the ultimate in performance and durability.

50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfect housing for an enormous oil capacity and surface area to resist shock fade and maintain vehicle handling.

Unlike some other brands, each Dobinsons shock absorber is designed specifically for the vehicle and application and is designed to perform best when matched with Dobinsons Coil Springs. In some cases multiple options are available to ensure the best possible ride, handling, comfort and performance is achieved for the complete suspension system.

Features and Specifications:

Massive 56mm & 66mm Outer Body
External Remote Oil Reservoir
3mm Heavy Duty Wall Thickness
Monster 50mm & 60mm Bore
Direct Bolt-on Design
Triple Lip Oil Seal
Fully Rebuildable Design
Vehicle Specific Valving
EDP Surface Protection
Natural Rubber Bushings

Important Notes for setting up your Vehicle Correctly:

When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
Please do not put Occasional Loads into your "Constant" Load determinations.
Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:
