TOYOTA HILUX N70 (VIGO) (2005 TO MID 2015) - RAW NITRO MAX LIFT KIT - PREASSEMBLED STRUTS

Toyota Hilux N70 (Vigo) (2005 to Mid 2015) - Raw Nitro Max Lift Kit - Preassembled Struts

Raw 4x4

Type: Hilux

Model: N70 (Vigo) GGN,KUN25 / GGN,KUN26

Year: 2005 to Mid 2015

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 40mm

Rear Lift: 40mm - 45mm

Detail: Ute / Dual Cab
ENGINE: All Variants
Front Preassembled Strut & Coils
Extra Heavy Duty - Nitro Max
45mm Bore Nitrogen Gas Technology

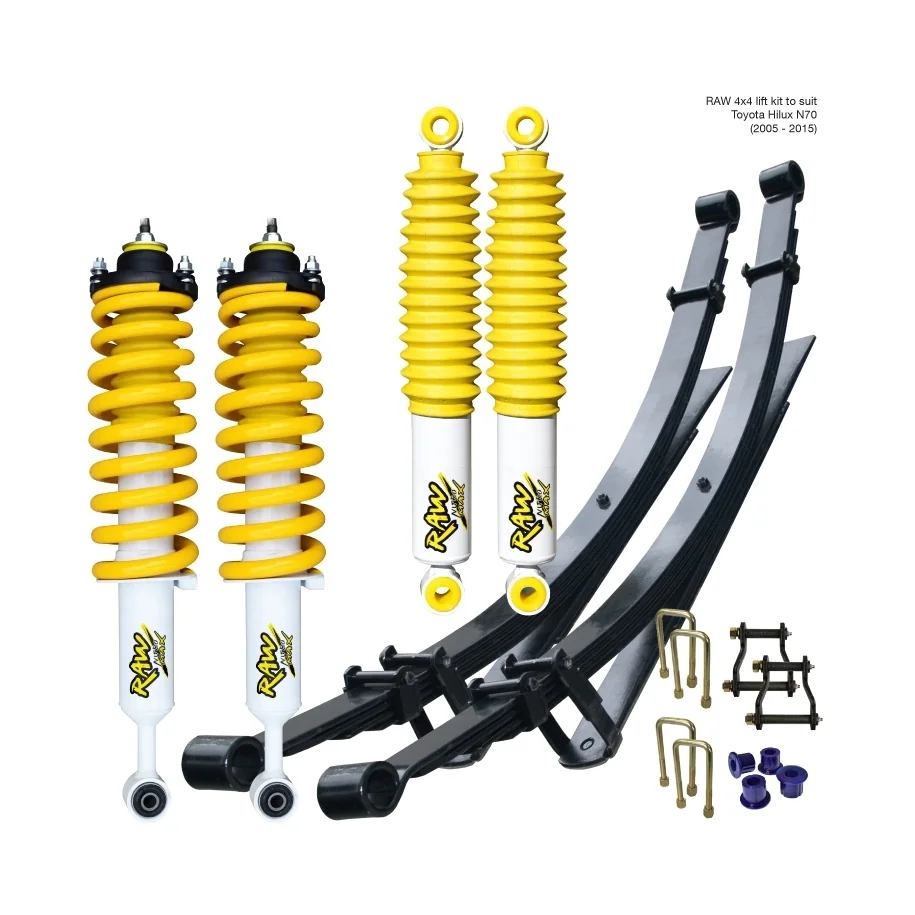

The kit contains:

  • 2x Raw Nitro Max - Front Preassembled Strut & Coils
  • 2x NM326 - Raw Nitro Max Rear Shocks
  • 2x Rear Leaf Springs
  • 1x M1099K - Brake Hose Extension Kit
  • 1x Mounting kit for leaf springs:
    BSK1001 - Mounting kit for leaf springs RL877,RL878,RL969

Mounting kit contains:

  • 4x U-bolts
  • 2x Shackle hangers
  • 1x Poly Bush kit - Rear spring front eye
  • 1x Poly Bush kit - Rear spring lower rear eye
  • 1x Poly Bush kit - Rear spring upper shackle
Customise your kit below:
* Front Load Options
* Rear Load Options
Upgrade Cost: 0
$2,084.50
$2,084.50
$1,876.05 Save 10%
Tax included
$2,145.00
$268.95
Quantity
 Calculate Shipping Cost

Type: Hilux

Model: N70 (Vigo) GGN,KUN25 / GGN,KUN26

Year: 2005 to Mid 2015

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 40mm

Rear Lift: 40mm - 45mm

Detail: Ute / Dual Cab
ENGINE: All Variants
Front Preassembled Strut & Coils
Extra Heavy Duty - Nitro Max
45mm Bore Nitrogen Gas Technology


NitroMax: Extra Heavy Duty Shocks & Struts

Specifically designed for heavy coil sprung and torsion bar vehicles, Nitro Max uses a proven truck shock absorber design with highly tuned valving for 4 x 4 applications carrying heavy loads and travel demanding terrain.

Recommended for vehicles used in mining, long distance touring, towing and heavy duty applications.

Features

Strong construction build to last

  • 360° welds with one piece eye rings and machine welded end caps for increased strength and durability.
  • Deep penetrating structural welds for stronger construction
  • Body and shield made of strong steel construction with extra thick tube for added endurance and strength

Engineered for Performance

Nitro Max achieve enhanced performance and longevity through:

  • Larger external body size
  • Low pressure nitrogen gas charged to resist fade
  • Improved dampening
  • High temperature oil
  • Seals resistant to elevated temperatures
  • Hydraulic stop at fully extended

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Toyota
Model
Hilux
Series
N70 - Vigo - 2005 to Mid 2015
Brand
Raw 4x4
Shock Type
Raw Nitro Max
Product Type
Full Lift Kit
Lift Height
40-50mm
