TOYOTA HILUX N70 (4/05-2015) - TOUGH DOG 41MM FOAM CELL LIFT KIT - PREASSEMBLED STRUTS

Toyota Hilux N70 (4/2005-2015) - Tough Dog 41mm Foam Cell Lift Kit - Preassembled Struts

Tough Dog

Type: Hilux

Model: N70 KUN26R, GGN25R

Year: 4/2005-2015

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 40mm

Rear Lift: 40mm

Detail: 41mm Internal Bore Foam Cell
Front Preassembled Struts & Coils

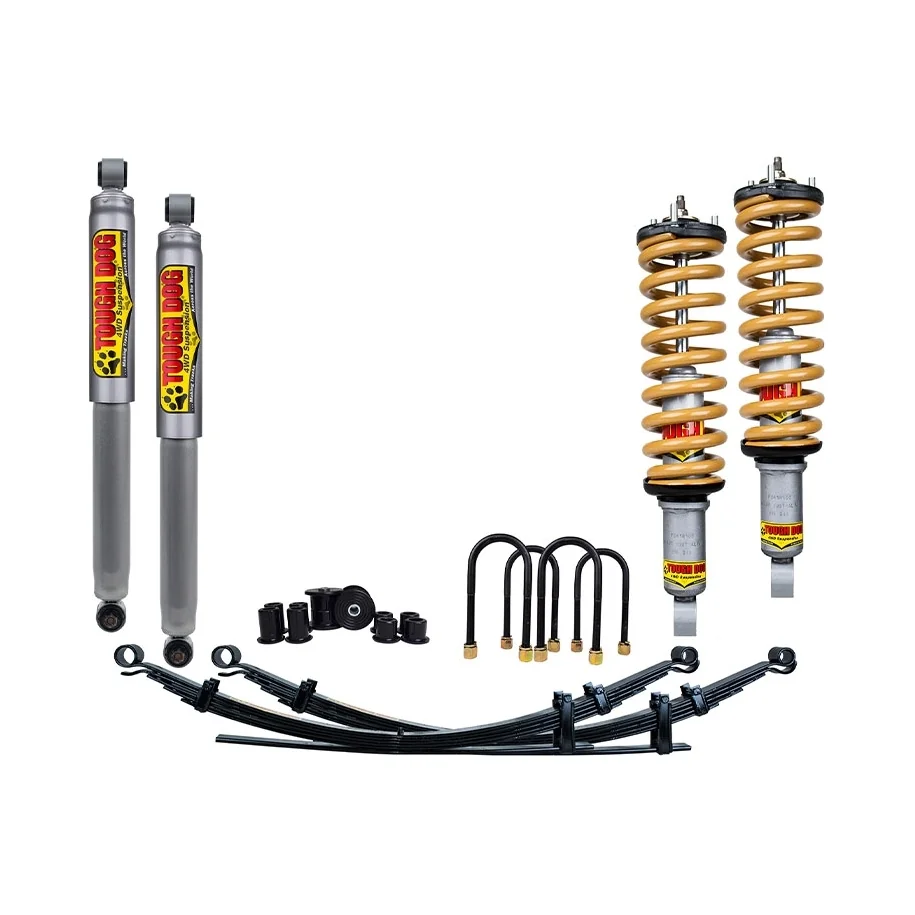

The kit contains:

  • 2x Tough Dog 41mm Foam Cell - Front Preassembled Strut & Coils
  • 2x FC41376 - Tough Dog 41mm Foam Cell Rear Shocks
  • 2x TDUB-016 - U-Bolts
  • 1x TDUK-067 - Urethane bush kit

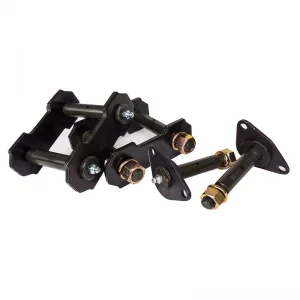

  • 1x TDGP-668 - Greasable Pins
  • 1x TDGS-389 - Greasable Shackles
  • 2x Tough Dog Rear Leaf Springs

Recommended Upgrades:

  • 1x TDCA-002 - Upper Control Arms
  • 1x TDAA-112 - Bellows Airbags
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$2,563.00
$2,563.00
$2,306.70 Save 10%
Tax included
$2,371.00
$64.30
Sale ends in:
Quantity
 Calculate Shipping Cost

Product Upgrades and Additions

Type: Hilux

Model: N70 KUN26R,GGN25R

Year: 4/2005-2015

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 40mm

Rear Lift: 40mm

Detail: 41mm Internal Bore Foam Cell
Front Preassembled Struts & Coils


Foam Cell Shock Absorbers

Tough Dogs award winning Foam Cell shock is our best selling shock for all round performance. Whether you head bush on the occasional weekend or for the majority of the year, Foam Cell shocks will handle your application.

Features:

  • Twin tube design
  • High temperature, all weather oil
  • 18mm, double chrome-plated rod
  • Additional welding on all studs & eyerings
  • Multi stage Velocity Sensitive Valving
  • Rod wiper seal and multi lip seal
  • Hydraulic rebound stop
  • 4 Year / unlimited km Recreational warranty (Conditions Apply)
  • 3 Year / unlimited km Commercial warranty (Conditions Apply)

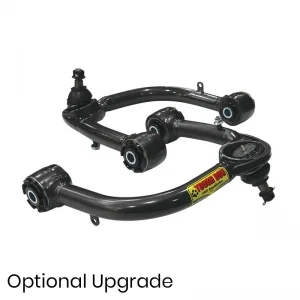

Upper Control ArmsUPPER-CONTROL-ARMS

When an IFS vehicle is fitted with a suspension lift, the original caster and camber specifications are pushed outside the acceptable limit. The vehicle loses caster which makes the steering vague, and positive camber is introduced, which contributes to uneven and accelerated tyre wear. Tough Dog Upper Control arms can help get the maximum performance and lifediv from your suspension and steering components.

This Vehicle Part No: TDCA-002

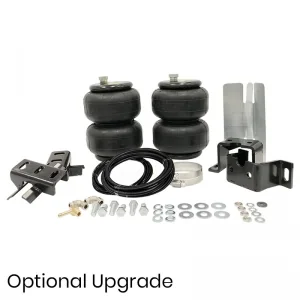

Bellows AirbagsBELLOWS-AIRBAGS

When carrying varying loads or heavy towing, Air Assist bellows kits can help level off vehicles. By increasing the air pressure, the bellows kit increases the effective spring rate and levels the vehicle. The kit is mounted to the axle tube and chassis where the OEM bump stop would be. Most kits can be fitted without drilling to install mounting brackets

This Vehicle Part No: TDAA-112


Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Toyota
Model
Hilux
Series
N70 - Vigo - 2005 to Mid 2015
Brand
Tough Dog
Shock Type
Tough Dog 41mm Foam Cell
Product Type
Full Lift Kit
Lift Height
40-50mm
