TOYOTA HILUX N70 (2005 TO MID 2015) - DOBINSONS IMS MONOTUBE FRONT LIFT - PREASSEMBLED STRUTS
      • TOYOTA HILUX N70 (2005 TO MID 2015) - DOBINSONS IMS MONOTUBE FRONT LIFT - PREASSEMBLED STRUTS

      Toyota Hilux N70 (2005 to Mid 2015) - Dobinsons IMS Monotube Front Lift - Preassembled Struts

      (0) Reviews

      The following parts are currently out of stock:

      • UCA59-203K - Forged Aluminium Upper Control Arms (Pair) Adjustable Camber Increased Castor With Ball Joint

      UCA59-203K are due back in stock soon.

      If you are still interested in ordering your kit with these parts please call to confirm the parts are back instock or check to see if we have an ETA on new stock.


      Type: Hilux

      Model: N70 Vigo - KUN/GGN 25/26, KZN 35/36

      Year: 2005 to Mid 2015

      Suspension Type: Coil Spring Front

      Front Lift: 40-50mm

      Detail: 4x4 Single Cab
      4x4 Extra Cab
      4x4 Dual Cab
      50mm Lift (2")


      The kit contains:

      • 2x Dobinsons Front Coil Springs
      • 2x IMS59-50220 - IFP Monotube Front Shock absorbers
        Adjustable Spring Seat Height - X = 226mm / 8.89"

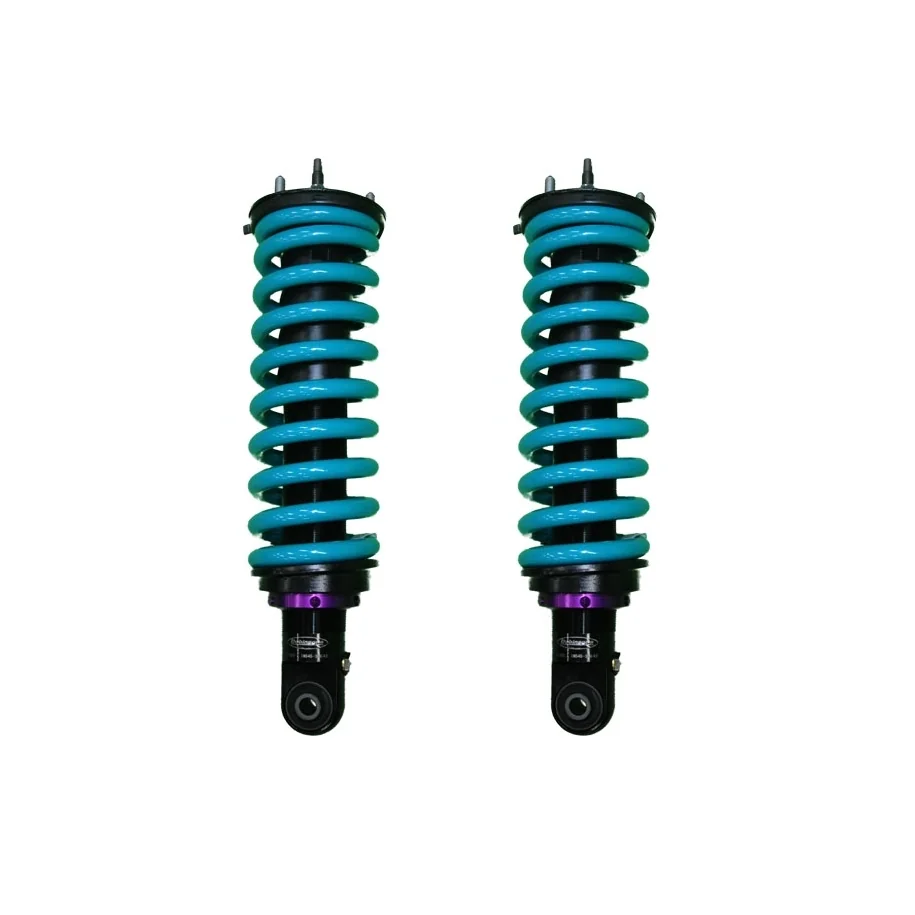

      • Coil and Strut Assembly with new strut tops SC59-001 - Strut tops

      Optional Upgrades:

      • 1x UCA59-003K - Upper Control Arm - (Pair) Chrome-Moly Tubular 3º Castor Built In Rubber Bushes with Ball Joint
      • 1x UCA59-203K - Upper Control Arm Forged Aluminium - (Pair) Adjustable Camber & Castor Rubber Bushes With Ball Joint

      Customise your kit below:

      $990.00
      Tax included
      $1,190.00
      $200.00
      Quantity
      100% secure payments
       Calculate Shipping Cost
      Shipping:
      0
      Postcode via Delivery address is residential

      Type: Hilux

      Model: N70 Vigo - KUN/GGN 25/26, KZN 35/36

      Year: 2005 to Mid 2015

      Suspension Type: Coil Spring Front

      Front Lift: 40-50mm

      Detail: 4x4 Single Cab
      4x4 Extra Cab
      4x4 Dual Cab
      50mm Lift (2")


      Dobinsons IMS monotube shock absorbers are designed for next level performance over twin tube shocks in those hot, harsh, demanding conditions. By utilising the monotube design, Dobinsons IMS shock absorbers are able to resist fade far longer on corrugated roads, long or hard working 4WD trips, towing or racing conditions.

      The larger 50 and 60mm high flow pistons reduce internal pressures, reduce the heat generated, transfer heat to the body for faster cooling and offer improved damping performance and vehicle control at higher shaft speeds on rough terrain and during big impacts. Threaded bodies on struts allow for fine tuning of height and offer further improvements in cooling. The micro polished, hard chromed and heat treat shock shaft, CNC aluminium high flow race inspired piston, and DOM seamless tubing body provides the ultimate in performance and off-road durability.

      Composite piston wear bands, high quality Fuchs oil and a race style 3-stage sealing system offer the lowest levels of friction whilst maintaining durability and longevity without the need for frequent rebuilding or servicing. Dobinsons team of engineers spend hundreds of hours of testing and tuning the shim stacks and damping Characteristics in each IMS shock to ensure a balance of comfort, handling, vehicle control and off-road performance - Enjoy the ride

      Features:

      • Zero shock fade in all terrains
      • Direct, bolt-on replacement for easy fitment
      • Corrosion resistant (EDP Surface Protection)
      • Heavy duty single piece lower leg
      • Enormous oil capacity
      • Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in offroad handling
      • Race inspired Hi-Flow CNC 6061 Billet Alloy Piston for the ultimate in offroad handling

      Specifications:

      • 50/60mm CNC Machined High Flow Billet Aluminium Race Piston
      • Lightweight CNC Machined Low Friction Internal Floating Piston
      • 3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D. Shock Body Precision Honed to +/- 0.04mm
      • High Quality O.E.M Grade Natural Rubber Bushings
      • T6 6061 Height Adjustable Spring Seat
      • Single Piece Lower Leg
      • Carbon-Fibre /PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
      • EDP Surface Protection

      Important Notes for setting up your Vehicle Correctly:

      • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
      • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
      • Please do not put Occasional Loads into your "Constant" Load determinations.
      • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

      Please Note:

      • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

      Data sheet

      Make
      Toyota
      Model
      Hilux N70
      Year
      2001 to 2010
      2011 to 2020
      Brand
      Dobinsons
      Looking for
      Front Lift
      Kit Type
      Dobinsons IMS

      Specific References

      No customer reviews for the moment.

      Write your review

      Toyota Hilux N70 (2005 to Mid 2015) - Dobinsons IMS Monotube Front Lift - Preassembled Struts

      Type: Hilux

      Model: N70 Vigo - KUN/GGN 25/26, KZN 35/36

      Year: 2005 to Mid 2015

      Suspension Type: Coil Spring Front

      Front Lift: 40-50mm

      Detail: 4x4 Single Cab
      4x4 Extra Cab
      4x4 Dual Cab
      50mm Lift (2")


      The kit contains:

      • 2x Dobinsons Front Coil Springs
      • 2x IMS59-50220 - IFP Monotube Front Shock absorbers
        Adjustable Spring Seat Height - X = 226mm / 8.89"
      • Coil and Strut Assembly with new strut tops SC59-001 - Strut tops

      Optional Upgrades:

      • 1x UCA59-003K - Upper Control Arm - (Pair) Chrome-Moly Tubular 3º Castor Built In Rubber Bushes with Ball Joint
      • 1x UCA59-203K - Upper Control Arm Forged Aluminium - (Pair) Adjustable Camber & Castor Rubber Bushes With Ball Joint
