ISUZU DMAX (05/2012 - 04/2016) - TOUGH DOG 35MM NITRO GAS LIFT KIT

Isuzu Dmax (05/2012-04/2016) - Tough Dog 35mm Nitro Gas Lift Kit - Preassembled Struts

Tough Dog

Type: D-Max

Model: 2nd Gen

Year: 05/2012-04/2016

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 40mm

Rear Lift: 40mm

Detail: 35mm Internal Bore Foam Cell Rear Shocks
41mm Internal Bore Foam Cell Front Shocks
Front Preassembled Struts & Coils

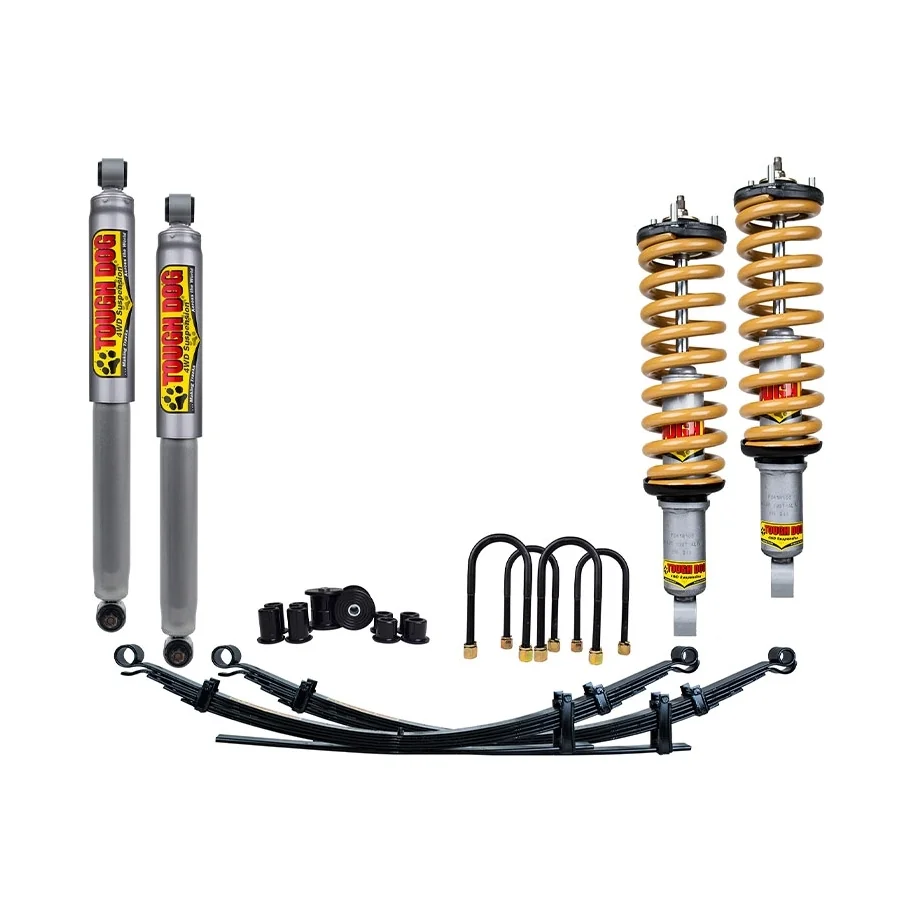

The kit contains:

  • 2x Tough Dog 41mm Foam Cell - Front Preassembled Strut & Coils
  • 2x BD1382T - Tough Dog 35mm Nitro Gas Rear Shocks
  • 2x TDUB-016 - U-Bolts
  • 1x TDUK-071 - Urethane Bush Kit
  • 1x TDGP-668 - Greasable Pins

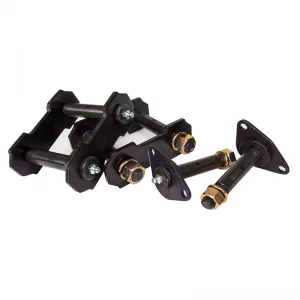

  • 1x TDGS-391 - Greasable Shackles
  • 1x TDSK-021 - Handbrake Relocation Kit
  • 2x Tough Dog Rear Leaf Springs

Recommended Upgrades:

  • 1x TDAA-104 - Bellows Airbags
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$2,585.00
$2,585.00
$2,326.50 Save 10%
Tax included
Sale ends in:
Quantity
 Calculate Shipping Cost

Product Upgrades and Additions

Type: D-Max

Model: 2nd Gen

Year: 05/2012-04/2016

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 40mm

Rear Lift: 40mm

Detail: 35mm Internal Bore Foam Cell Rear Shocks
41mm Internal Bore Foam Cell Front Shocks
Front Preassembled Struts & Coils


Nirtogen Gas Charged Shock Absorbers

Tough Dog Nitrogen Gas shock absorbers have been designed with control and comfort in mind.

Features:

  • Low pressure nitrogen gas to eliminate fade for better performance and comfortable ride
  • Double chrome-plated shaft
  • High temperature, all weather fluid
  • Custom designed for each application
  • OEM or longer length shocks to suit standard or raised 4WDs for maximum articulation, comfort, safety & durability
  • 3 Year / unlimited km warranty (conditions apply)

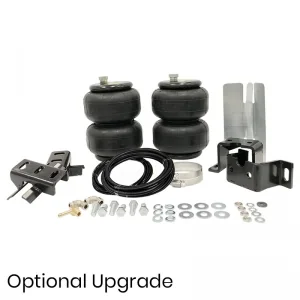

Bellows Airbags

When carrying varying loads or heavy towing, Air Assist bellows kits can help level off vehicles. By increasing the air pressure, the bellows kit increases the effective spring rate and levels the vehicle. The kit is mounted to the axle tube and chassis where the OEM bump stop would be. Most kits can be fitted without drilling to install mounting brackets

This Vehicle Part No: TDAA-104


Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Isuzu
Model
D-Max
Series
2nd Gen - 05/2012 to MY 2020
Brand
Tough Dog
Shock Type
Tough Dog 35mm Nitro Gas
Product Type
Full Lift Kit
Lift Height
40-50mm
