ISUZU DMAX (05/2012 TO MY 2020) - DOBINSONS MONOTUBE REMOTE RESERVOIR NONADJUSTABLE (MRR) LIFT KIT 2

Isuzu DMax (05/2012 to MY 2020) - Dobinsons Monotube Remote Reservoir Nonadjustable (MRR) Lift Kit 2"

Type: D-Max 2nd Generation

Model: TFS85

Year: 05/2012 to MY 2020

Detail: V-CROSS, 3.0L Turbo Diesel Single Cab / Dual Cab

Shock Info: Nonadjustable Remote Reservoir (MRR)

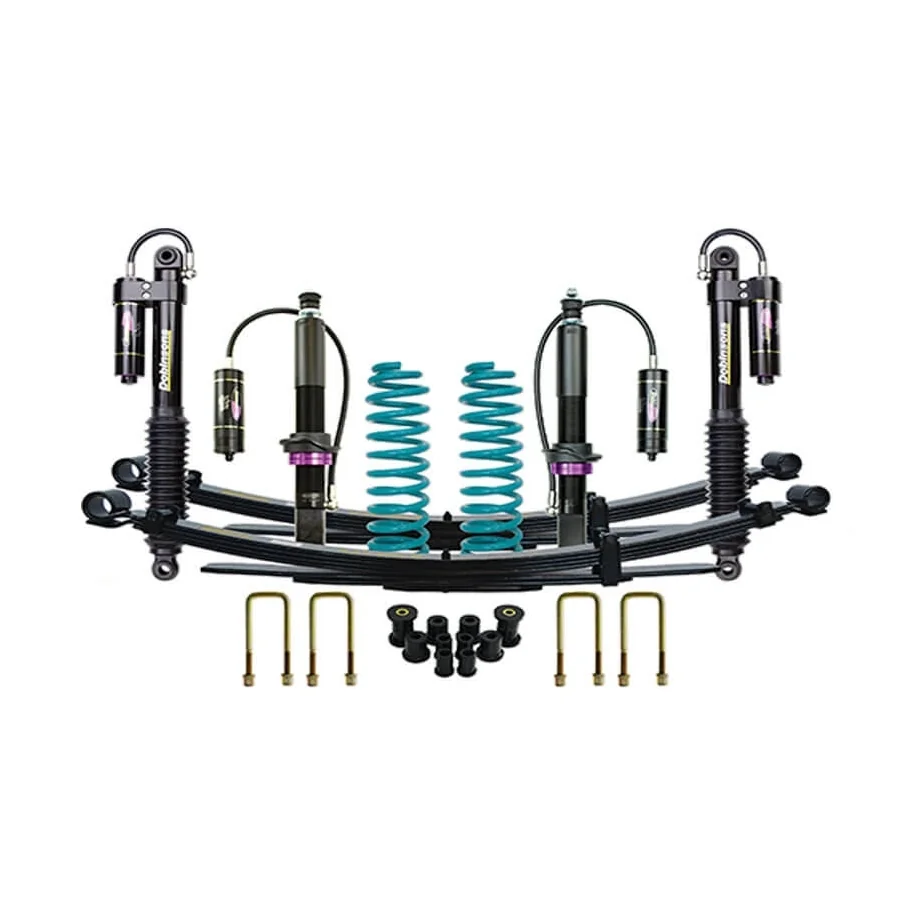

The kit contains:

  • 2x MR21-50470-1 - Dobinsons MRR Front Shock absorbers
  • 2x Dobinsons Front Coil Springs
  • 2x MR43-50801 - Dobinsons MRR Rear Shock absorbers
  • 2x Dobinsons Rear Leaf Springs
  • 4x U Bolts
  • 1x PB21-1105K - Polyurethane Leaf Spring Bush Kit

Recommended Upgrades:

  • 2x SK21-059 - Greasable Shackles & 2x SP59-060 - Greasable Shackle Pins

Optional Upgrades:

  • Coil and Strut Assembly with new strut tops - SC59-002 - Strut tops
  • 1x DD21-590K - Diff Drop Kit - Decreases CV Angle
  • 1x WA21-546K - UCA Ball Joint Spacer - Must Not Be Fitted Without DD21-590K
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$2,524.50
$2,524.50
$2,272.05 Save 10%
Tax included
Quantity
 Calculate Shipping Cost

Type: D-Max 2nd Generation

Model: TFS85

Year: 05/2012 to MY 2020

Detail: V-CROSS, 3.0L Turbo Diesel Single Cab / Dual Cab

Shock Info: Nonadjustable Remote Reservoir (MRR)


With serious 4x4 owners now pushing their vehicles through harder, harsher terrain with more accessories fitted to their 4x4’s than ever before Dobinsons saw the need for a no compromise, performance engineered shock absorber that offers the ultimate in performance.

Over four years of research, development and testing was undertaken to produce Dobinsons Monotube Remote Reservoir shock absorbers. Dobinsons MRR Series introduces premium quality build design and features to achieve the ultimate in performance and durability.

50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfect housing for an enormous oil capacity and surface area to resist shock fade and maintain vehicle handling.

Unlike some other brands, each Dobinsons shock absorber is designed specifically for the vehicle and application and is designed to perform best when matched with Dobinsons Coil Springs. In some cases multiple options are available to ensure the best possible ride, handling, comfort and performance is achieved for the complete suspension system.

Features and Specifications:

  • Massive 56mm & 66mm Outer Body
  • External Remote Oil Reservoir
  • 3mm Heavy Duty Wall Thickness
  • Monster 50mm & 60mm Bore
  • Direct Bolt-on Design
  • Triple Lip Oil Seal
  • Fully Rebuildable Design
  • Vehicle Specific Valving
  • EDP Surface Protection
  • Natural Rubber Bushings

The kit contains:

  • 2x MR21-50470 - Dobinsons MRR Front Shock absorbers
  • 2x Dobinsons Front Coil Springs
  • 2x MR43-50801 - Dobinsons MRR Rear Shock absorbers
  • 2x Dobinsons Rear Leaf Springs
  • 4x U Bolts
  • 1x PB21-1105K - Polyurethane Leaf Spring Bush Kit

Recommended Upgrades:

  • 2x SK21-059 - Greasable Shackles & 2x SP59-060 - Greasable Shackle Pins

Optional Upgrades:

  • Coil and Strut Assembly with new strut tops - SC59-002 - Strut tops
  • 1x DD21-533K - Diff Drop Kit - Decreases CV Angle - UCA Ball Joint Spacer Must Not Be Fitted Without DD21-533K & WA21-546K
  • 1x WA21-546K - UCA Ball Joint Spacer - Must Not Be Fitted Without DD21-533K

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Isuzu
Model
D-Max
Series
2nd Gen - 05/2012 to MY 2020
Brand
Dobinsons
Shock Type
Dobinsons MRR
Product Type
Full Lift Kit
Lift Height
40-50mm
