ISUZU MU-X UCS85 (2013 TO MID 2021) - DOBINSONS TWIN TUBE NITRO GAS LIFT KIT

Isuzu MU-X UCS85 (2013 to Mid 2021) - Dobinsons Twin Tube Nitro Gas Lift Kit

Type: MU-X

Model: UCS85

Year: 2013 to Mid 2021

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 45mm

Rear Lift: 45mm

Detail: 4x4
Twin Tube Nitrogen Gas charged shock absorbers

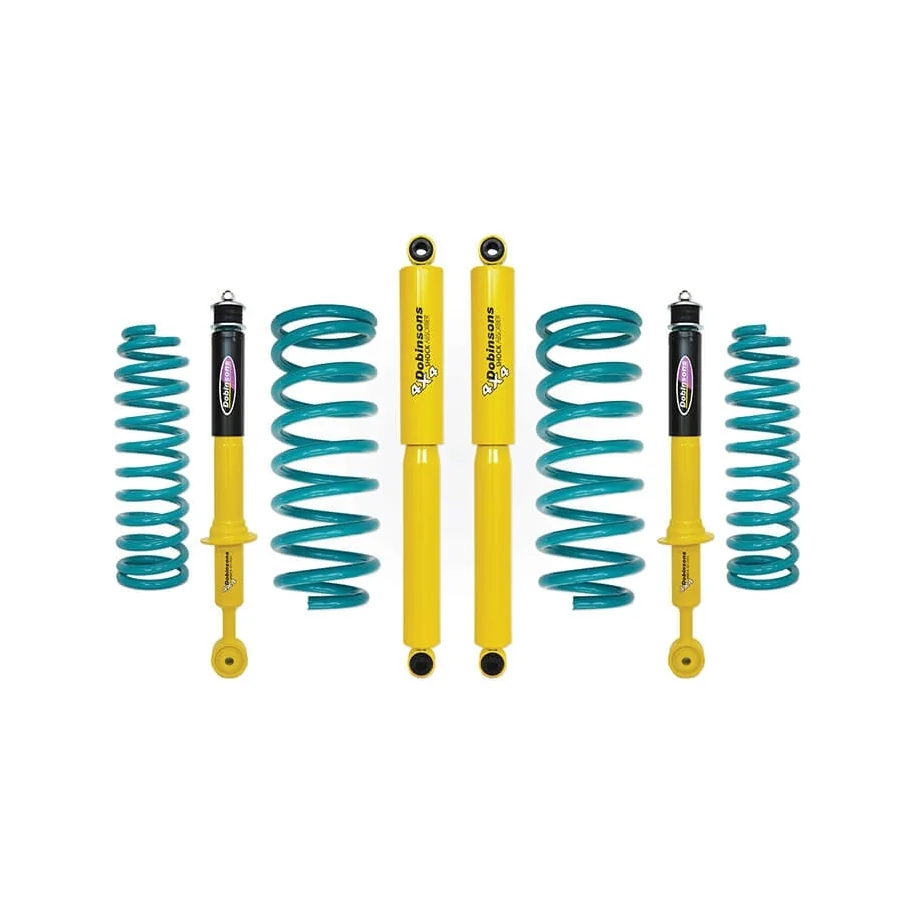

The kit contains:

  • 2x Dobinsons Front Coil Springs
  • 2x GS21-470 - Twin Tube Nitro Gas Front Shock absorbers
  • 2x GS59-940 - Twin Tube Nitro Gas Rear Shock absorbers
  • 2x Dobinsons Rear Coil Springs

Recommended Upgrades:

  • Coil and Strut Assembly with new strut tops SC59-002 - Strut tops

Optional Upgrades:

  • 1x CR5133HP - Airbag Man - Air Suspension Helper Kit
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$1,336.50
$1,336.50
$1,269.68 Save 5%
Tax included
Quantity
 Calculate Shipping Cost

Type: MU-X

Model: UCS85

Year: 2013 to Mid 2021

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 45mm

Rear Lift: 45mm

Detail: 4x4
Twin Tube Nitrogen Gas charged shock absorbers


Twin Tube Nitro-Gas

Designed, developed and tested in Australia by Dobinsons Spring & Suspension, in house suspension design engineers, Dobinsons 4x4 shock absorbers are designed and tested to perform in the harshest conditions right across the world.

As Dobinsons Spring and Suspension export to over 40 countries worldwide from their Australian head office, the importance of quality is at the forefront in the complete design and manufacturing process. This ensures every shock can withstand the blistering heat and corrugations of the Australian outback right through to the subzero temperatures of a Russian winter.

Features:

  • Nitrogen Gas Charged
  • Superior Design
  • High Quality Parts
  • Manufacturing Process

Specifications:

  • Direct Bolt-In O.E Replacement
  • 35mm & 32mm Bore Size
  • Double Chromed 18mm Rod
  • 60mm & 51mm Body Size
  • High Quality Fuch's Oil
  • NOK Multi-Lip Seals
  • Teflon Piston Rings
  • Twin Tube Big-Bore Design
  • Vehicle & Weight Specific Valving
  • Natural Rubber Bushings

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Isuzu
Model
MU-X
Series
UCS85 - 2013 to Mid 2021
Brand
Dobinsons
Shock Type
Dobinsons Nitro Gas
Product Type
Full Lift Kit
Lift Height
40-50mm
