NISSAN PATROL GU UTE COIL REAR SERIES 1 - 4 (05/1999 ON) - DOBINSONS IMS MONOTUBE LIFT KIT 3

Nissan Patrol Y60 GQ / Y61 GU (GQ 1987 to 1998 / GU 1997 on) - Dobinsons IMS Monotube Lift Kit 3"

Type: Patrol

Model: Y61 GU / Y60 GQ

Year: GU 1997 on / GQ 1987 to 1998

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 75mm

Rear Lift: 75mm

Detail: Wagon & Pickup / Utility
75mm (3” Lift)
IFP/IMS monotube shock absorbers
Series I,II,III,IV - 1997 to 2006
Series V - 2007 on

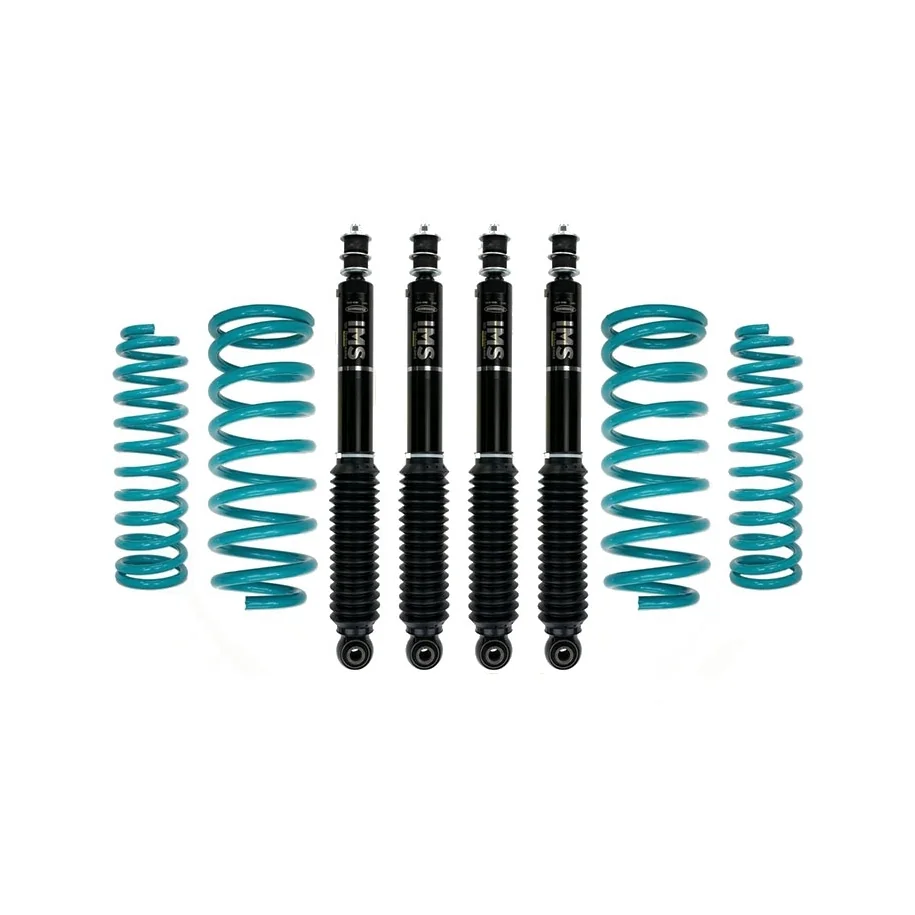

The kit contains:

  • 2x Dobinsons Front Coil Springs
  • 2x IMS51-60116 - IFP Monotube Front Shock absorbers
  • 2x IMS45-60913 - IFP Monotube Rear Shock absorbers
  • 1x BA45-005 - Break Proportioning Valve Extension
  • 2x Dobinsons Rear Coil Springs

Recommended Upgrades:

  • 1x SD51-811 - Steering Damper - 12/1997 to 02/2000 (Wagon) - 01/1999 on (Pickup)
  • 1x SD45-801 - Steering Damper - 02/2000 on (Wagon)
  • 1x RB59-522K - Castor Kit - Fixed Rubber Front Radius Arm Castor Kit Angle Setting: ±2.5° 4 x Rubber Eccentric Bushes
    Raising Vehicle Will Effect Castor Angle. A Wheel Alignment is Recommended to Determine if a Castor Kit is Required.
  • 1x WA45-513K - 5° Castor Plate Kit (Suits Both Arms)
  • 1x PR45-1402 - Adjustable Panhard Rod (Front) - with Bushes to 02/2000 (Wagon) - 1992 on (Pickup)
  • 1x PR45-1416 - Adjustable Panhard Rod (Front) - with Ball Joint & Bush - 02/2000 on (Wagon)
  • 1x PR45-1403 - Adjustable Panhard Rod (REAR) - with Bushes to 02/2000 (Wagon) - 1992 on (Pickup)
  • 1x PR45-1415 - Adjustable Panhard Rod (REAR) - with Bushes 02/2000 on (Wagon)

Optional Upgrades:

  • 1x RM45-007 - Reservoir Mounting Bracket Kit - MRR and MRA kits only
    * Recommended For Optimal Remote Reservoir Positioning And Fitment
    * Only For Use With MR45-60114
  • 1x SA45-1424 - GU Patrol 38mm Solid Adjustable Draglink
  • 1x SA45-1422 - GQ Patrol 38mm Solid Adjustable Draglink
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$1,793.00
$1,793.00
$1,613.70 Save 10%
Tax included
$1,914.00
$300.30
Quantity
 Calculate Shipping Cost

Type: Patrol

Model: Y61 GU / Y60 GQ

Year: GU 1997 on / GQ 1987 to 1998

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 75mm

Rear Lift: 75mm

Detail: Wagon & Pickup / Utility
75mm (3” Lift)
IFP/IMS monotube shock absorbers


IFP Monotube Shock (IMS)

Dobinsons IMS monotube shock absorbers are designed for next level performance over twin tube shocks in those hot, harsh, demanding conditions. By utilising the monotube design, Dobinsons IMS shock absorbers are able to resist fade far longer on corrugated roads, long or hard working 4WD trips, towing or racing conditions.

The larger 50 and 60mm high flow pistons reduce internal pressures, reduce the heat generated, transfer heat to the body for faster cooling and offer improved damping performance and vehicle control at higher shaft speeds on rough terrain and during big impacts. Threaded bodies on struts allow for fine tuning of height and offer further improvements in cooling. The micro polished, hard chromed and heat treat shock shaft, CNC aluminium high flow race inspired piston, and DOM seamless tubing body provides the ultimate in performance and off-road durability.

Composite piston wear bands, high quality Fuchs oil and a race style 3-stage sealing system offer the lowest levels of friction whilst maintaining durability and longevity without the need for frequent rebuilding or servicing. Dobinsons team of engineers spend hundreds of hours of testing and tuning the shim stacks and damping Characteristics in each IMS shock to ensure a balance of comfort, handling, vehicle control and off-road performance - Enjoy the ride

Features:

  • Zero shock fade in all terrains
  • Direct, bolt-on replacement for easy fitment
  • Corrosion resistant (EDP Surface Protection)
  • Heavy duty single piece lower leg
  • Enormous oil capacity
  • Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in offroad handling
  • Race inspired Hi-Flow CNC 6061 Billet Alloy Piston for the ultimate in offroad handling

Specifications:

  • 50/60mm CNC Machined High Flow Billet Aluminium Race Piston
  • Lightweight CNC Machined Low Friction Internal Floating Piston
  • 3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D. Shock Body Precision Honed to +/- 0.04mm
  • High Quality O.E.M Grade Natural Rubber Bushings
  • T6 6061 Height Adjustable Spring Seat
  • Single Piece Lower Leg
  • Carbon-Fibre /PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
  • EDP Surface Protection

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Nissan
Model
Patrol
Series
Y60 GQ (Wagon - Coil Rear) - 03/1988 - 1997
Y60 GQ - (Pickup / Utility - Coil Rear) - 1992 to 05/1999
Y61 GU - (Pickup / Utility - Coil Rear) - 05/1999 on
Y61 GU - (Wagon - Coil Rear) - 12/1997 on
Brand
Dobinsons
Shock Type
Dobinsons IMS
Product Type
Full Lift Kit
Lift Height
75mm
