TOYOTA HILUX N80 (2015 ONWARDS) - DOBINSONS MONOTUBE REMOTE RESERVOIR NONADJUSTABLE (MRR) LIFT KIT 2

Toyota Hilux N80 (2015 onwards) - Dobinsons Monotube Remote Reservoir nonadjustable (MRR) Lift Kit 2"

Type: Hilux

Model: N80 Revo - KUN/GGN/GUN 125, KUN/GUN 126, GUN13

Year: 2015 onwards

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 45mm

Rear Lift: 45-50mm

Detail: 4x4
50mm Lift (2")
Nonadjustable Remote Reservoir (MRR)
Does Not Fit 2022 on Hilux Rouge or 2022 on Hilux GR Sport With Wider Wheel Track

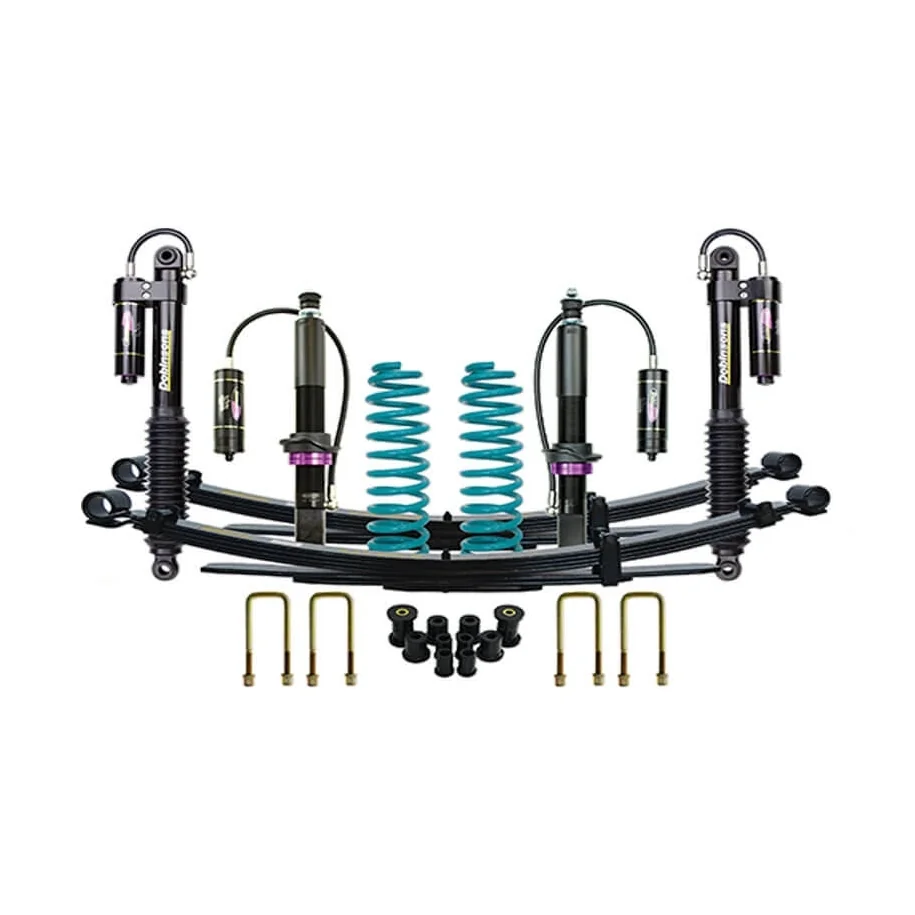

The kit contains:

  • 2x Dobinsons Front Coil Springs
  • 2x MR59-50228 or MR59-50700 - Monotube Remote Reservoir nonadjustable Front Shock absorbers
    Adjustable Spring Seat Height X = 226mm / 8.89"
  • 2x MR59-50229 - Monotube Remote Reservoir nonadjustable Rear Shock absorbers
  • 1x PB59-1094K - Polyurethane Bush Kit
  • 4x UB59-437 - U Bolts
  • 2x Dobinsons Rear Leaf Springs

Recommended Upgrades:

  • Coil and Strut Assembly with new strut tops SC59-001 - Strut tops
  • 2x SK59-064 - Greasable Shackles & 2x SP59-060 - Greasable Shackle Pins

Optional Upgrades:

  • 1x BA59-007 - Headlight Adjuster
    * Recommended For Auto Headlight Models
  • 1x WA59-553K - Tailshaft Center Bearing Spacer Kit - Helps To Reduce Driveline Vibration In Lifted Vehicles. Should Be Fitted To All Lifted Vehicles.
  • 1x RM59-004 - Reservoir Mounting Bracket Kit - Remote Reservoir Positioning And Fitment
    * MRR and MRA shocks come with a generic mounting Bracket.
  • 1x UCA59-003K - Upper Control Arm - (Pair) Chrome-Moly Tubular 3º Castor Built In Rubber Bushes with Ball Joint
  • 1x UCA59-203K - Upper Control Arm Forged Aluminium - (Pair) Adjustable Camber & Castor Rubber Bushes With Ball Joint
  • 1x RR4718 - Airbag Man - Air Suspension Helper Kit for Leaf Springs
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$2,575.00
$2,575.00
$2,317.50 Save 10%
Tax included
$2,746.62
$429.12
Quantity
 Calculate Shipping Cost

Product Upgrades and Additions

Type: Hilux

Model: N80 Revo - KUN/GGN/GUN 125, KUN/GUN 126, GUN13

Year: 2015 onwards

Suspension Type: Coil Spring Front / Leaf Spring Rear

Front Lift: 45mm

Rear Lift: 45-50mm

Detail: 4x4
50mm Lift (2")
Does Not Fit 2022 on Hilux Rouge or 2022 on Hilux GR Sport With Wider Wheel Track


Monotube Remote Reservoir nonadjustable (MRR) shock absorbers

With serious 4x4 owners now pushing their vehicles through harder, harsher terrain with more accessories fitted to their 4x4’s than ever before Dobinsons saw the need for a no compromise, performance engineered shock absorber that offers the ultimate in performance.

Over four years of research, development and testing was undertaken to produce Dobinsons Monotube Remote Reservoir shock absorbers. Dobinsons MRR Series introduces premium quality build design and features to achieve the ultimate in performance and durability.

50mm and 60mm extra large bores, combined with remote oil reservoirs, provide the perfect housing for an enormous oil capacity and surface area to resist shock fade and maintain vehicle handling.

Unlike some other brands, each Dobinsons shock absorber is designed specifically for the vehicle and application and is designed to perform best when matched with Dobinsons Coil Springs. In some cases multiple options are available to ensure the best possible ride, handling, comfort and performance is achieved for the complete suspension system.

Features and Specifications:

  • Massive 56mm & 66mm Outer Body
  • External Remote Oil Reservoir
  • 3mm Heavy Duty Wall Thickness
  • Monster 50mm & 60mm Bore
  • Direct Bolt-on Design
  • Triple Lip Oil Seal
  • Fully Rebuildable Design
  • Vehicle Specific Valving
  • EDP Surface Protection
  • Natural Rubber Bushings

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Toyota
Model
Hilux
Series
N80 - Revo - 2015 onwards
Brand
Dobinsons
Shock Type
Dobinsons MRR
Product Type
Full Lift Kit
Lift Height
40-50mm
