Toyota FJ Cruiser Dobinsons Monotube IFP Lift Kit

Toyota FJ Cruiser GSJ15 (01/2011 on) - Dobinsons IMS Monotube Lift Kit

Type: FJ Cruiser

Model: GSJ15 Australia

Year: 01/2011 on

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 35-60mm

Rear Lift: 30-60mm

Detail: 4.0L V6
IFP/IMS monotube shock absorbers

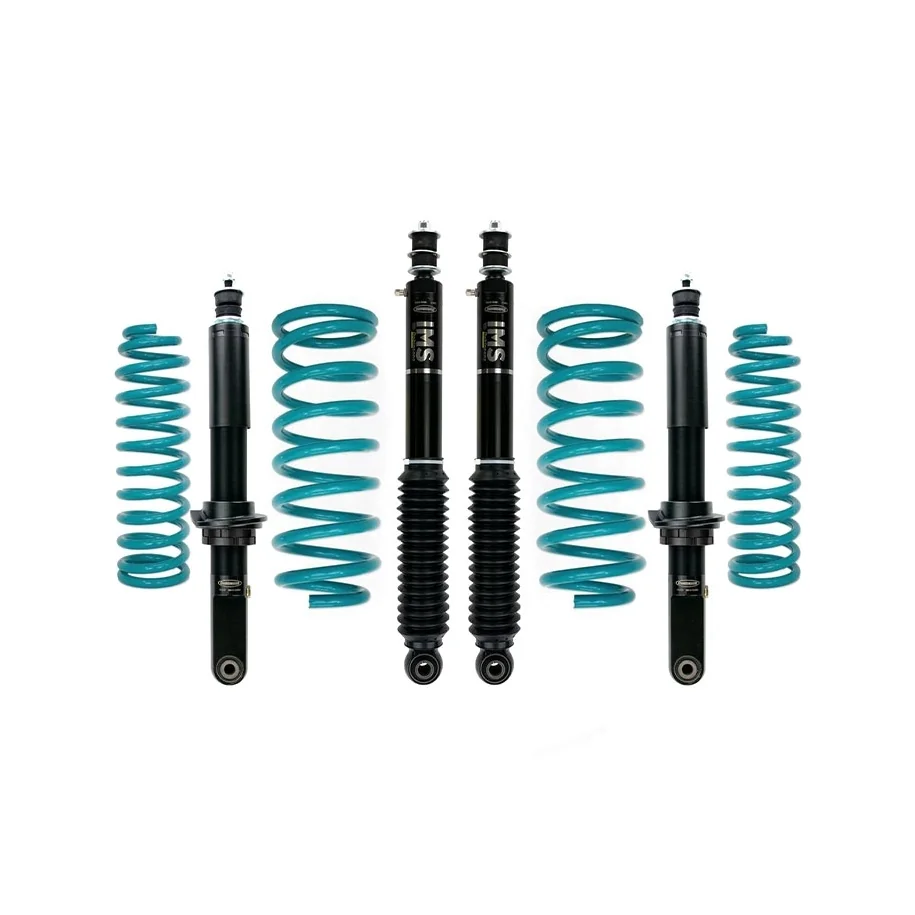

The kit contains:

  • 2x Dobinsons Front Coil Springs
  • 2x IMS59-50700 - IFP Monotube Front Shock absorbers
    Adjustable Spring Seat Height X = 213mm / 8.38"
  • 2x IMS59-50701 - IFP Monotube Rear Shock absorbers
  • 2x Dobinsons Rear Coil Springs

Recommended Upgrades:

  • Coil and Strut Assembly with new strut tops SC59-001 - Strut tops
  • 1x UCA59-002K - Upper Control Arm (Front) - (Pair) Chrome-Moly Tubular - 3º Castor Built In - Rubber Bushes with Ball Joint
    Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment
  • 1x UCA59-202K - Upper Control Arm (Front) - Forged Aluminium (Pair) - Adjustable Camber - Increased Castor With Ball Joint
    Must Fit When Raising Vehicle Above 50mm To Allow For Improved Caster Angle Alignment
  • 1x DD59-527K - Diff Drop Kit
    Must Fit When Raising Vehicle Above 50mm

Optional Upgrades:

  • 1x SE59-535K - Sway Bar Relocation Kit (Front)
  • 1x WA59-522K - Upper Control Arm (Rear) - Heavy Duty Rear Upper - Adjustable Control Arms (Pair) - Complete With Bushes
    Designed For More Articulation
  • 1x WA59-520K - Lower Control Arm (Rear) - Heavy Duty Rear Lower - Adjustable Control Arms (Pair) - Complete With Bushes
    Designed For More Articulation
  • 1x PR59-1423 - Adjustable Panhard Rod (Rear) - Complete with Bushes
  • 2x SE59-529 - Adjustable Sway Bar Extension (Rear)
    Suits 2" to 4" Lift
Customise your kit below:
* Front Load Options
* Rear Load Options
* Select your upgrades
Upgrade Cost: 0
$1,690.00
Tax included
$1,804.00
$114.00

-- IMS59-50700 - IFP Monotube Front Shock absorbers

Quantity
 Calculate Shipping Cost

Type: FJ Cruiser

Model: GSJ15 Australia

Year: 01/2011 on

Suspension Type: Coil Spring Front / Coil Spring Rear

Front Lift: 35-60mm

Rear Lift: 30-60mm

Detail: 4.0L V6
IFP/IMS monotube shock absorbers


IFP Monotube Shock (IMS)

Dobinsons IMS monotube shock absorbers are designed for next level performance over twin tube shocks in those hot, harsh, demanding conditions. By utilising the monotube design, Dobinsons IMS shock absorbers are able to resist fade far longer on corrugated roads, long or hard working 4WD trips, towing or racing conditions.

The larger 50 and 60mm high flow pistons reduce internal pressures, reduce the heat generated, transfer heat to the body for faster cooling and offer improved damping performance and vehicle control at higher shaft speeds on rough terrain and during big impacts. Threaded bodies on struts allow for fine tuning of height and offer further improvements in cooling. The micro polished, hard chromed and heat treat shock shaft, CNC aluminium high flow race inspired piston, and DOM seamless tubing body provides the ultimate in performance and off-road durability.

Composite piston wear bands, high quality Fuchs oil and a race style 3-stage sealing system offer the lowest levels of friction whilst maintaining durability and longevity without the need for frequent rebuilding or servicing. Dobinsons team of engineers spend hundreds of hours of testing and tuning the shim stacks and damping Characteristics in each IMS shock to ensure a balance of comfort, handling, vehicle control and off-road performance - Enjoy the ride

Features:

  • Zero shock fade in all terrains
  • Direct, bolt-on replacement for easy fitment
  • Corrosion resistant (EDP Surface Protection)
  • Heavy duty single piece lower leg
  • Enormous oil capacity
  • Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in offroad handling
  • Race inspired Hi-Flow CNC 6061 Billet Alloy Piston for the ultimate in offroad handling

Specifications:

  • 50/60mm CNC Machined High Flow Billet Aluminium Race Piston
  • Lightweight CNC Machined Low Friction Internal Floating Piston
  • 3mm Thick Heavy Duty DOM Seamless 56mm / 66mm O.D. Shock Body Precision Honed to +/- 0.04mm
  • High Quality O.E.M Grade Natural Rubber Bushings
  • T6 6061 Height Adjustable Spring Seat
  • Single Piece Lower Leg
  • Carbon-Fibre /PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
  • EDP Surface Protection

Important Notes for setting up your Vehicle Correctly:

  • When selecting Springs to suit your lift, please Select Springs only to suit Current "CONSTANT" Loads Front and Rear.
  • Towing Loads are not included in your Constant Load Calculations, as they are not "Constant" Loads.
  • Please do not put Occasional Loads into your "Constant" Load determinations.
  • Selecting a load rating that is too heavy for your setup will result in Poor Flex Off-Road, Compromised Suspension Travel & Rough Ride, and will cause damage to your new shock absorbers and other components by pushing them outside of their intended range.

Please Note:

  • All lift heights stated are estimated lift heights, due to the large number of variables in each different vehicles setup and accessories.

Data sheet

Make
Toyota
Model
FJ Cruiser
Series
GSJ15 - 11/2006 - 01/2011 on
Brand
Dobinsons
Shock Type
Dobinsons IMS
Type
Full Lift Kit
Lift Height
40-50mm
