Airbag Man Dual Paddle Air Control Kit with Tyre Inflation using 3 Gallon Air Tank and Heavy Duty Compressor (Kit) - AC3013

Airbag Man Dual Paddle Air Control Kit with Tyre Inflation using 3 Gallon Air Tank and Heavy Duty Compressor (Kit) - AC3013

Airbag Man
AC3013
$1,050.01
Tax included
Quantity
 Calculate Shipping Cost

NOTE: This product is a universal fitment and may not suit all applications, please contact us if you are unsure if it is suitable.

Airbag Man Dual Paddle Air Control Kit with Tyre Inflation using 3 Gallon Air Tank and Heavy Duty Compressor (Kit)

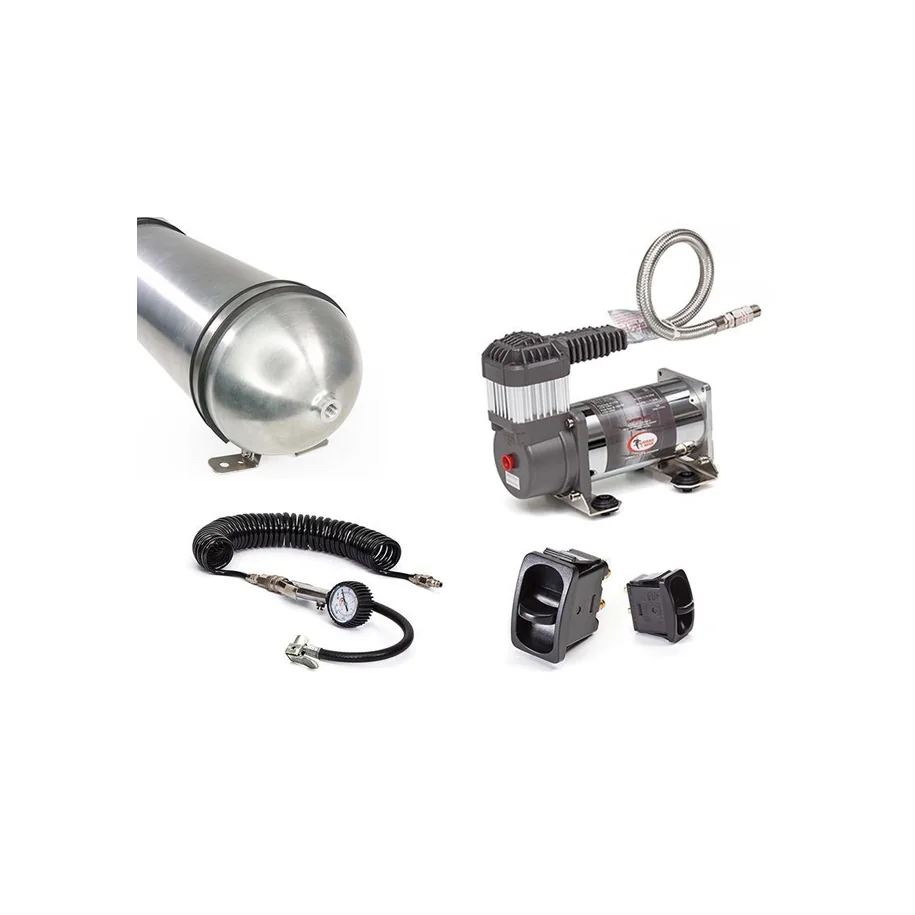

KIT INCLUDES:

AC8110 Air Compressor: High-Quality 12V Heavy Duty (Suitable for all Airbags & Tyres) Air Compressor, 200PSI Working Pressure, 50% Duty Cycle, 76 LPM / 2.70 CFM @ 0PSI Max Amp Draw 35 Amps.

Compressor Dimensions : 155mm L x 81 mm W x 124mm H Space Required (open at one end for ventilation) 205mm Lx81mm Wx 174mm H.

Control Panel: Dual Paddle Airbag Control Switches for Inflate & Deflate, Req. 22.5mm W x 40.6mm H Hole, Dual Switch Mounting Bracket Included & Tyre Inflation Wand 7.5 m / 25, Multi-Fit, Easy Install Panels.

Air Tank: 3 Gal / 11 L Seamless Lightweight Aluminium Air Tank SAE J1 0 Approved, No Corrosion, Max Working Pressure 200PSI Pressure Tested to 1000PSI, 3 x 1/4" NPT Ports Inc. Drain Port Multi-position Low Profile Bracket Set 605mm L x 168mm D x 194mm H (with mounting legs attached)

Fittings Kit: High Quality 1/4" nylon tubing, Quick-fit push-to-connect air fittings, easy to use electrical connections, fuse & holder included.

Airbag Man Dual Paddle Air Control Kit with Tyre Inflation using 3 Gallon Air Tank and Heavy Duty Compressor (Kit)

AC3013

Data sheet

Brand
Airbag Man
